Bandlist

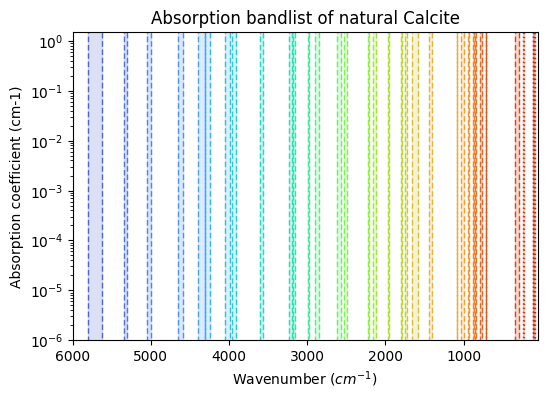

Absorption bandlist of natural Calcite
Sub-Bandlist
Combination vibration and overtone modes
Sub-Bandlist
32C16O32- in Calcite
Band
1621.0 cm-1: ν2+ν4 of (CO3)2- and νT(A1u)+νL(A2u)+νL(Eu) of (CO3)2- in Calcite
Band
1736.0 cm-1: 2ν2 of (CO3)2- in Calcite
Band
1797.0 cm-1: ν1+ν4 of (CO3)2- and νT(A1u)+νL(A2u)+νL(Eu) of (CO3)2- in Calcite
Band
1961.0 cm-1: ν1+ν2 of (CO3)2- in Calcite
Band
2141.0 cm-1: ν3+ν4 of (CO3)2- and 2ν1 of (CO3)2- and 3ν4 of (CO3)2- in Calcite
Band
2217.0 cm-1: ν2+ν3 of (CO3)2- and ν2+2ν4 of (CO3)2- in Calcite
Band
2510.0 cm-1: ν1+ν3 of (CO3)2- in Calcite
Band
2596.0 cm-1: 3ν2 of (CO3)2- in Calcite
Band
2874.0 cm-1: 2ν3 of (CO3)2- and 2ν1+ν4 of (CO3)2- in Calcite
Band
2983.0 cm-1: ν2+ν3+ν4 of (CO3)2- in Calcite
Band
3174.0 cm-1: 2ν1+ν2 of (CO3)2- in Calcite
Band
3216.0 cm-1: 2ν2+ν3 of (CO3)2- in Calcite
Band
3587.0 cm-1: 2ν1+ν3 of (CO3)2- in Calcite
Band
3942.0 cm-1: ν1+2ν3 of (CO3)2- in Calcite
Band
4020.0 cm-1: 3ν2+ν3 of (CO3)2- in Calcite
Band
4275.0 cm-1: 3ν3 of (CO3)2- and 2ν3+2ν4 of (CO3)2- in Calcite
Band
4352.0 cm-1: ν1+2ν2+ν3 of (CO3)2- in Calcite
Band
4620.0 cm-1: 3ν1+ν3 of (CO3)2- and 3ν1+2ν4 of (CO3)2- and ν1+2ν3+ν4 of (CO3)2- in Calcite
Band
5021.5 cm-1: 2ν1+2ν3 of (CO3)2- in Calcite
Band
5328.0 cm-1: ν1+3ν3 of (CO3)2- in Calcite
Band
5710.0 cm-1: 4ν3 of (CO3)2- in Calcite
- Title
- Absorption bandlist of natural Calcite
- Constituent
- Calcite (crystalline)
- Spectral range(s)
- 80 - 5800 cm-1
- Number of bands
- 33
- Version
- #1 (2022-07-14 18:51:50 UTC+0000, Updated: 2022-07-14 18:51:50 UTC+0000)
- Data reference
- Leclef, Apolline; Schmitt, Bernard and The SSHADE Band List Committee (2022): Absorption bandlist of natural Calcite. Version 1. SSHADE (OSUG Data Center). Dataset/Band list Data.https://doi.org/10.26302/SSHADE/BANDLIST_ABS_CALCITE
