- Instrument
- FTIR-ATR-MIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 400.0 - 4000.0 cm−1
- Observation geometry
- specular : i=45.0° ; e=45.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name

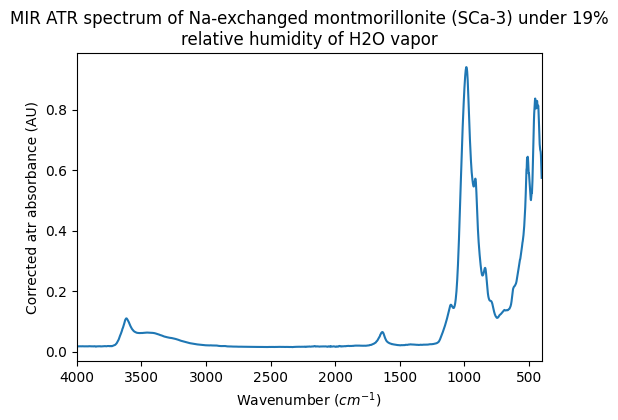

- Na-exchanged montmorillonite saturated with H2O at RH=19%
- Origin
- natural terrestrial
- Texture
- earthy
- Thickness
- 0.01 ± 0.005 cm
- Temperature
- 25.0 ± 3.0 ∘C
- Fluid
-
- N2 5.0 AirProducts , 99.4 ± 0.5%
- H2O , 0.4 ± 0.5%
References
- Data reference
- Kuligiewicz, Artur; Derkowski, Arkadiusz; Gionis, Vassilis; Chryssikos, Georgios (2014): Mid-infrared attenuated total reflectance experiment with Na+ exchanged less 1 μm size fraction of montmorillonite (SCa-3) equilibrated with H2O vapor under variable relative humidity. SSHADE/LSD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_AK_20141102_1
