- Instrument
- FTIR-ATR-MIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 450.0 - 4500.0
- Observation geometry
- specular : i=45.0° ; e=45.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name

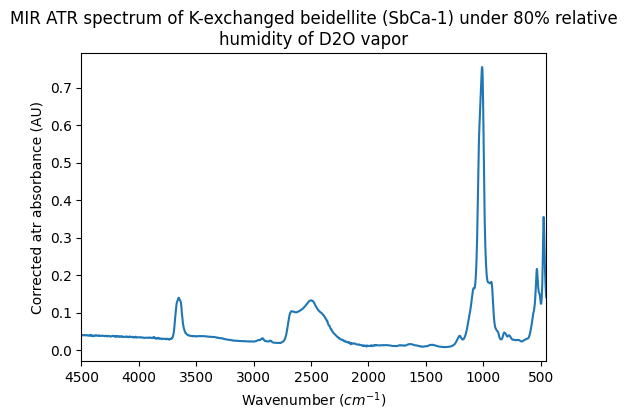

- K-exchanged smectite saturated with D2O at RH=80%
- Origin
- natural terrestrial
- Texture
- earthy
- Thickness
- 0.01 0.005
- Temperature
- 25.0 3.0
- Fluid
-
- N2 5.0 AirProducts , 97.8 0.5%
- D2O , 2.2 0.5%
References
- Data reference
- Kuligiewicz, Artur; Derkowski, Arkadiusz; Gionis, Vassilis; Chryssikos, Georgios (2014): Mid-infrared attenuated total reflectance experiment with K+ exchanged less 1 μm size fraction of beidellite (SbCa-1) equilibrated with D2O vapor under variable relative humidity. SSHADE/LSD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_AK_20141110_1
