Spectrum preview
Title

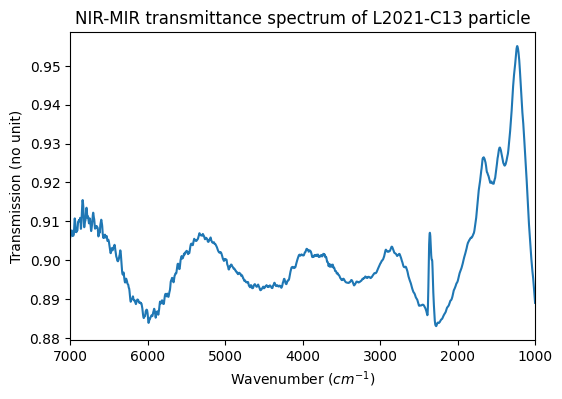

NIR-MIR transmittance spectrum of L2021-C13 particle
Database
Experiment type
laboratory measurement
Spectrum type
transmission
Version
#1 (2018-06-07 11:52:41 UTC+0000)
Instrument parameters
Instrument
MicroIR_Transmittance_0-10micron
Spectral observation mode
spectrum
Valid spectral range(s)
1000.0 - 7000.0 cm1
Spatial observation mode
single spot
Sample preview
Name
IDP L2021C13, chondrite FeO class, aggregate porous
Texture
single grain
Thickness
11.0 μm
Temperature
20.0 ± 10.0 C
References
Data reference
Rotundi, Alessandra (2005): IR measurements on stratospheric porous IDPs. SSHADE/COMEDA (OSUG Data Center). Dataset/Spectral Data.
