- Data reference

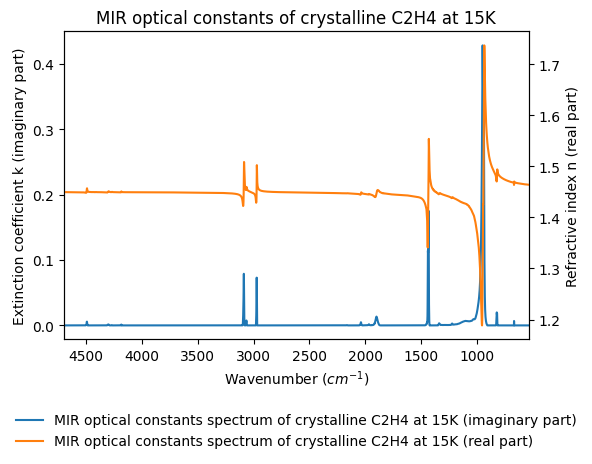

- Trotta, Frederic; Schmitt, Bernard (1993): MIR optical constants of crystalline C2H4 at 15K. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data.
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 1
- Variable type(s)
-
- no
- Instrument
- Nicolet 800 – transmission Mid-IR
- Sample holder
- CsI window 2mm thick cooled by He cryostat in UHV chamber with 2 CsI windows 5mm thick
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 535.0 - 4700.0 0.482150704812809 0.96 0.05
Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).
- Observation geometry
- direct
- Observation mode
- fixed angles
- Incidence angle
- 0.0°
- Emergence angle
- 180.0°
- Azimuth angle
- 0.0°
- Phase angle
- 2.21237390820801°
- Resolution illumination
- 15.0°
- Resolution observation
- 20.0°
Illumination
- Type of polarization
- no
Observation
- Type of polarization
- no
- Comments
- possibly partly polarized beam by beamsplitter
- Observation mode
- single spot
- Image size
- 8.0 x 8.0 $mm$
- Spatial resolution
- 8.0 ${\pm}$ 1.0 $mm$
- Date begin
- 1993-07-17
Versions
- Release date
- 2018-01-31 23:51:01 UTC+0000
- Version (Date)
- #1 (2018-01-31 23:51:01 UTC+0000)
