- DOI
- 10.26302/SSHADE/EXPERIMENT_CP_20180418_001
- Data reference
- Paleo, Charles; Le Roy, Damien; Dupuis, Véronique (2018): Co K edge, Fe K edge and Pt L3 edge XAS fluorescence of CoFePt nanocomposite films. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_CP_20180418_001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

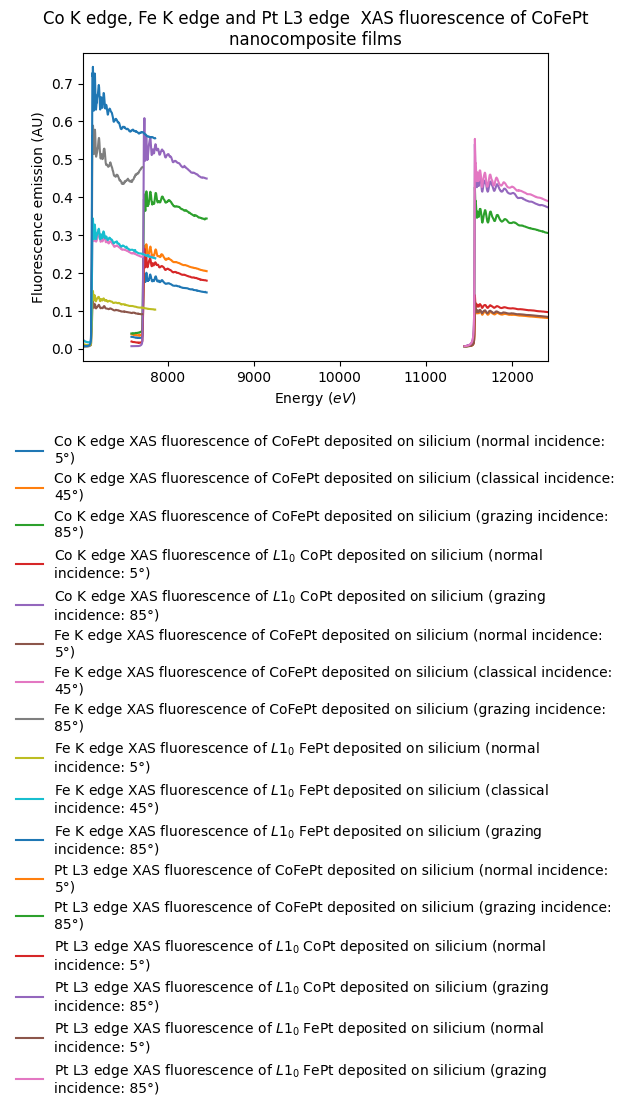

- Varying composition, absorption edge and incidence angle
- Number of spectra
- 17
- Comments
- These data were acquired on the BM30 beamline in the frame of the HC-3629 proposal.
- Variable type(s)
-
- spectral range
- sample composition
- Instrument
- X-ray Absorption Spectroscopy measured in fluorescence mode
- Sample holder
- simple holder
- Standard medium
- unknown
- Observation mode
- spectrum
- Spectral range type(s)
- hard X
- Valid spectral range(s)
-
Min - Max ($eV$) Sampling ($eV$) Resolution ($eV$) Position accuracy ($eV$) Absorption edge #1 7580.0 - 8452.0 0.395 $Co$ (K: 7.7089 $keV$) #2 7015.0 - 7704.0 0.365 $Fe$ (K: 7.112 $keV$) #3 11449.0 - 12417.0 0.593 $Pt$ (L3: 11.5637 $keV$) - Comments
- The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the absorption edge of references: Co metallic foil (first maximum of the derivative set at 7709 eV) for Fe and Co K edges and Pt metallic foil (first maximum of the derivative set at 11564 eV) for Pt L3 edge.
Definition: emergence angle is positive with origin at nadir. Azimuth origin (increasing clockwise) is arbitrary.
- Observation geometry
- directional
- Observation mode
- fixed angles
- Comments
- Emitted x-rays are collected in a solid angle directed at 90 degrees from the incident beam.
- Observation mode
- single spot
- Date begin - end
- 2018-04-18 - 2018-04-24
Versions
- Release date
- 2021-02-22 07:43:08 UTC+0000
- Version (Date)
- #1 (2021-02-22 07:43:08 UTC+0000, Updated: 2021-02-22 07:43:08 UTC+0000)
