- DOI
- 10.26302/SSHADE/EXPERIMENT_DM_20131025_003
- Data reference
- Mege, Daniel; Nna-Mvondo, Delphine; Singh, Sandeep; Chevrier, Vincent (2013): NIR reflectance spectra of AMES tholins covering Spectralon in various proportions. SSHADE/SOSYPOL (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_DM_20131025_003
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

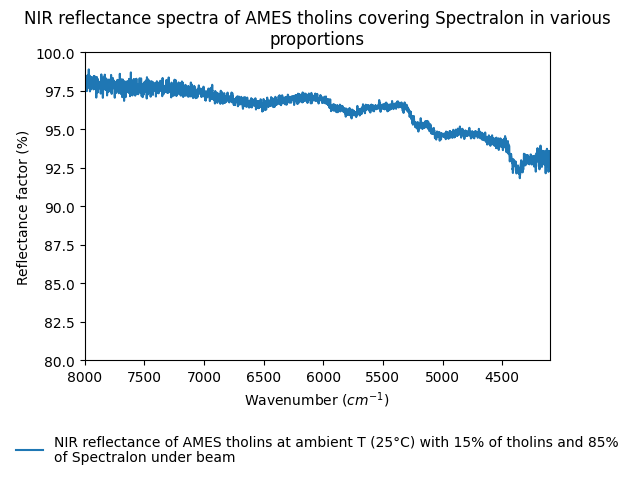

- NIR reflectance spectra of AMES tholins covering Spectralon in various proportions (15%, 4%, 2%) at ambient P and T
- Number of spectra
- 3
- Variable type(s)
-
- sample abundance
- Comments
- variation of the ratio tholin/spectralon under beam
- Instrument
- FTIR_NIR_reflectance
- Sample holder
- Andromeda simulation chamber with Titan Module
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- NIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 4100.0 - 8000.0 4.0 2.0
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- bidirectional
- Observation mode
- fixed angles
- Incidence angle
- 0.0°
- Emergence angle
- 5.0°
- Azimuth angle
- 0.0°
- Phase angle
- 5.0°
- Observation mode
- single spot
- Spatial resolution
- 15.0 ${\pm}$ 5.0 $mm$
- Parent experiment
- NIR reflectance spectra of mixtures of AMES tholins with liquid and solid CH4, C2H6 and CH3CN at several temperatures
- Date begin - end
- 2013-10-25 - 2013-10-25
Versions
- Release date
- 2020-02-13 12:09:17 UTC+0000
- Version (Date)
- #1 (2020-02-13 12:09:17 UTC+0000, Updated: 2020-02-13 12:09:17 UTC+0000)
