Br K edge XAS of gallium bromide solution in hydrothermal conditions at 300bars and between 300 and 650K | FAME

Experiment

Title: Br K edge XAS of gallium bromide solution in hydrothermal conditions at 300bars and between 300 and 650K

DOI

10.26302/SSHADE/EXPERIMENT_DT_20180710_001

Data reference

Da Silva, Cécile; Testemale, Denis; Hazemann, Jean-Louis; Proux, Olivier (2006): Br K edge XAS of gallium bromide solution in hydrothermal conditions at 300bars and between 300 and 650K. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_DT_20180710_001

Publications

Da Silva et al., 2009, J. Mol. Liq., 147, 83 - 95

Owner

Database(s)

FAME

Experimentalists

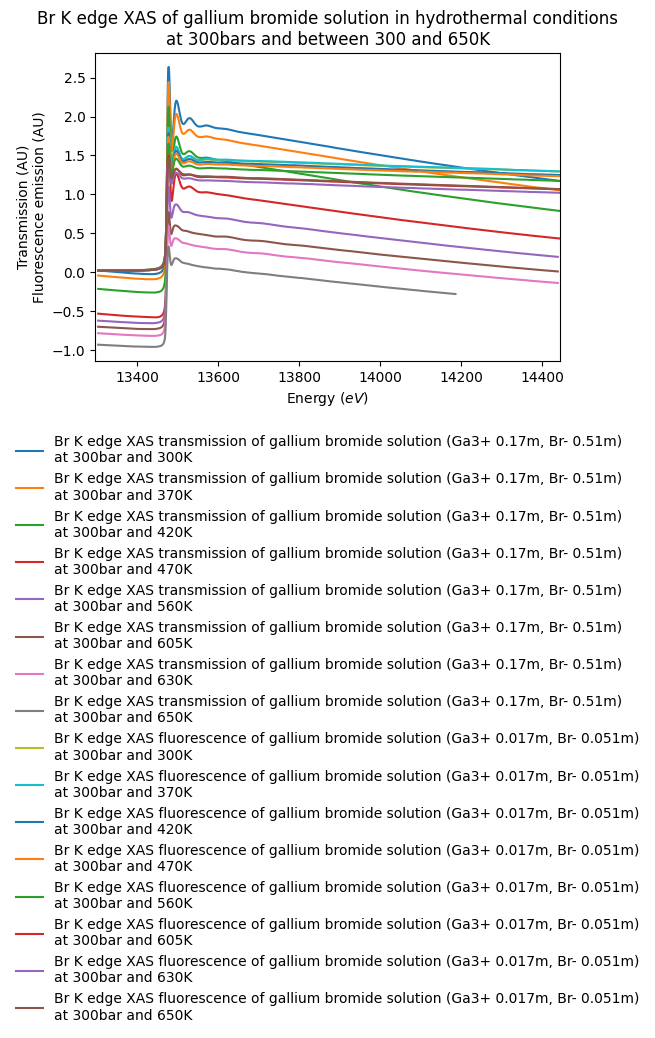

Spectra preview

Experiment type

Type(s): laboratory measurement
Description: Two concentrations: Ga3+ 0.17m, Br- 0.51m and Ga3+ 0.017m, Br- 0.051m; temperature varying from 300 to 650K
Number of spectra: 16

Variable parameters

Variable type(s)

sample composition
temperature

Location

Laboratory: French Absorption spectroscopy beamline in Material and Environmental science (FAME)

Instrument #1

Instrument: X-ray Absorption Spectroscopy measured in fluorescence mode
Sample holder: Institut Néel autoclave, see Testemale et al., Rev. Sci. Instrum., 2005.

Spectral parameters

Standard medium

unknown

Observation mode

spectrum

Spectral range type(s)

hard X

Valid spectral range(s)

	Min - Max ($eV$)	Sampling ($eV$)	Resolution ($eV$)	Position accuracy ($eV$)	Absorption edge
#1	13297.0 - 14444.0		0.69		$Br$ (K: 14.3256 $keV$)

Comments

The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the Br K edge of a KBr hydrated pellet (first maximum of the derivative set at 13474 eV).

Spatial parameters

Observation mode: single spot

Instrument #2

Instrument: X-ray Absorption Spectroscopy measured in transmission mode
Sample holder: Institut Néel autoclave, see Testemale et al., Rev. Sci. Instrum., 2005.
