- Title

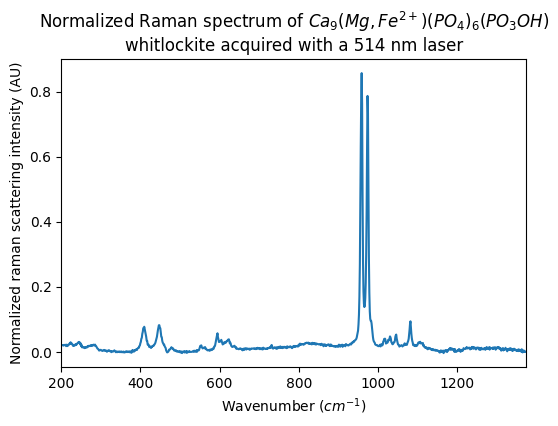

- Normalized Raman spectrum of $Ca_9(Mg,Fe^{2+})(PO_4)_6(PO_3OH)$ whitlockite acquired with a 514 nm laser
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- normalized Raman scattering intensity
- Version
- #1 (2019-09-02 15:05:03 UTC+0000)
- Instrument
- DILOR XY micro-Raman - 514 nm
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 200.0 - 1375.0 $cm^{-1}$
- Observation geometry
- directional-conical :
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Whitlockite
- Origin
- natural terrestrial
- Texture
- compact crystal
- Temperature
- 22.0 $\pm$ 1.0 $^{\circ}C$
References
- Data reference
- Montagnac, Gilles (2000): Raman spectra of some phosphate minerals. SSHADE/REAP (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_GM_20190902_001
