- Instrument
- BRUKER 113v – reflection Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 6.67 - 25.0
- Observation geometry
- specular : i=12.0° ; e=12.0° ph=0.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- BRUKER 113v – reflection Far-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 15.0 - 50.0
- Observation geometry
- specular : i=12.0° ; e=12.0° ph=0.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Quartz alpha Brazil
- Origin
- natural terrestrial
- Texture
- compact crystal
- Thickness
- 7.5 0.2
- Temperature
- 833.0 5.0
References
- Data reference

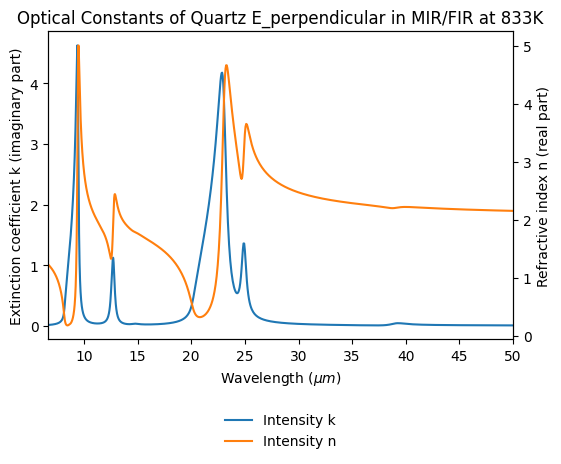

- Zeidler, Simon; Mutschke, Harald (2012): T-dependent Optical Constants of quartz, spinel and corundum. SSHADE/DOCCD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_HM_20160512_001
