- DOI
- 10.26302/SSHADE/EXPERIMENT_IK_20210602_001
- Data reference

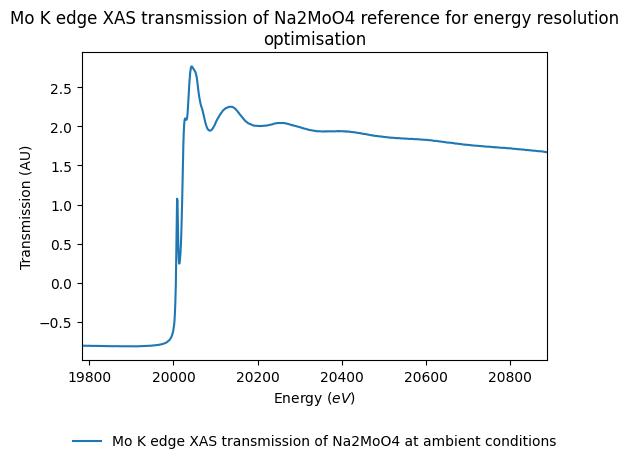

- Kieffer, Isabelle; Proux, Olivier; Hazemann, Jean-Louis (2021): Mo K edge XAS transmission of Na2MoO4 reference for energy resolution optimisation. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_IK_20210602_001
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 1
- Comments
- These data were acquired on the BM16 beamline in the frame of the BLC-13018 proposal.
- Variable type(s)
-
- no
- Instrument
- X-ray Absorption Spectroscopy measured in transmission mode
- Sample holder
- simple holder
- Standard medium
- unknown
- Observation mode
- spectrum
- Spectral range type(s)
- hard X
- Valid spectral range(s)
-
Min - Max ($eV$) Sampling ($eV$) Resolution ($eV$) Position accuracy ($eV$) Absorption edge #1 19783.0 - 20887.0 1.03 $Mo$ (K: 19.9995 $keV$) - Comments
- The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the absorption edge of a reference: Mo metallic foil (first maximum of the derivative set at 20000 eV).
Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).
- Observation geometry
- direct
- Observation mode
- fixed angles
- Observation mode
- single spot
- Date begin - end
- 2021-06-01 - 2021-06-03
Versions
- Release date
- 2021-06-09 06:57:33 UTC+0000
- Version (Date)
- #1 (2021-06-09 06:57:33 UTC+0000, Updated: 2022-11-18 09:44:38 UTC+0000)
