- Title

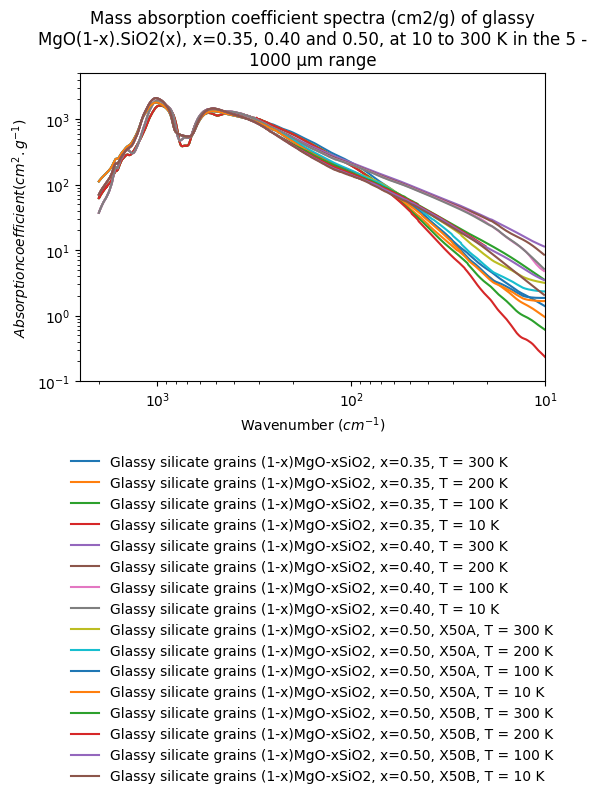

- Mass absorption coefficient spectra (cm2/g) of glassy MgO(1-x).SiO2(x), x=0.35, 0.40 and 0.50, at 10 to 300 K in the 5 - 1000 µm range
- DOI
- 10.26302/SSHADE/EXPERIMENT_KD_20170711
- Data reference
- Demyk, Karine; Meny, Claude; Lu, Xing-Heng (2015): Mass absorption coefficient spectra (cm2/g) of glassy MgO(1-x).SiO2(x), x=0.35, 0.40 and 0.50, at 10 to 300 K in the 5 - 1000 µm range. SSHADE/STOPCODA (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_KD_20170711
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description
- Mass absorption coefficient spectra (cm2/g) of glassy $MgO_{1-x}.(SiO_2)_x$, x=0.35, 0.40 and 0.50, at 10 to 300 K in the 5 - 1000 µm range
- Number of spectra
- 16
- Variable type(s)
-
- temperature
- spectrum type
- Comments
- The grain temperature is varied from 10 K to 300 K.
- Instrument
- vertex70v-transmission-MIR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 250.0 - 2000.0 2.0
Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).
- Observation geometry
- direct
- Observation mode
- fixed angles
- Observation mode
- single spot
- Instrument
- vertex70v-transmission-FIR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- FIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 10.0 - 300.0 1.0
Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).
- Observation geometry
- direct
- Observation mode
- fixed angles
- Observation mode
- single spot
- Instrument
- Brucker125V-transmission-FIR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- FIR, sub-mm
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 10.0 - 40.0 1.0
Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).
- Observation geometry
- direct
- Observation mode
- fixed angles
- Observation mode
- single spot
- Date begin - end
- 2015-04-09 - 2015-04-09
Versions
- Release date
- 2018-01-31 23:51:01 UTC+0000
- Version (Date)
- #1 (2018-01-31 23:51:01 UTC+0000, Updated: 2021-02-05 15:25:04 UTC+0000)
- Newer/Last version(s)
