- Title

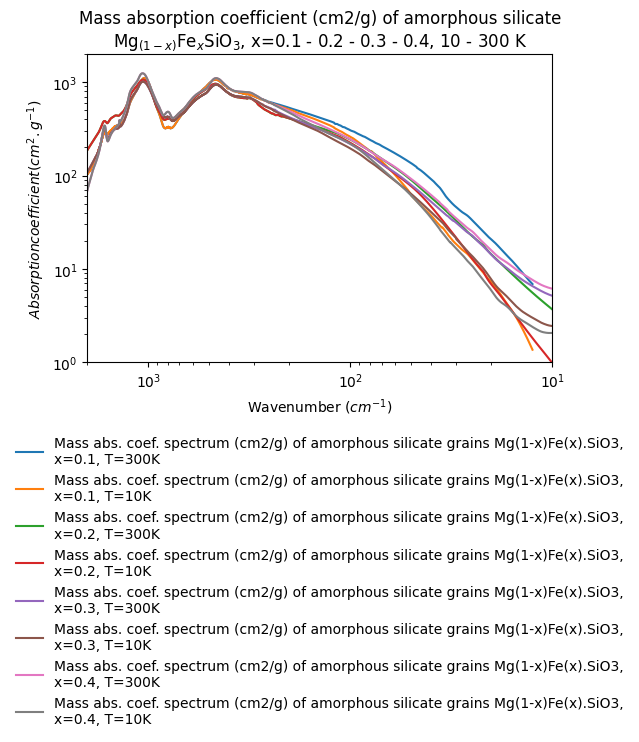

- Mass absorption coefficient (cm2/g) of amorphous silicate Mg$_{(1-x)}$Fe$_x$SiO$_3$, x=0.1 - 0.2 - 0.3 - 0.4, 10 - 300 K
- DOI
- 10.26302/SSHADE/EXPERIMENT_KD_20170822
- Data reference
- Demyk, Karine; Meny, Claude; Lu, Xing-Heng (2015): Mass absorption coefficient (cm2/g) of amorphous silicate Mg$_{(1-x)}$Fe$_x$SiO$_3$, x=0.1 - 0.2 - 0.3 - 0.4, 10 - 300 K. SSHADE/STOPCODA (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_KD_20170822
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 20
- Variable type(s)
-
- temperature
- Comments
- The grain temperature is varied from 10 K to 300 K.
- Instrument
- vertex70v-transmission-MIR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 250.0 - 2000.0 2.0
- Observation mode
- single spot
- Instrument
- vertex70v-transmission-FIR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- FIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 10.0 - 300.0 1.0
- Observation mode
- single spot
- Instrument
- Brucker125V-transmission-FIR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- FIR, sub-mm
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 10.0 - 40.0 1.0
- Observation mode
- single spot
- Date begin - end
- 2015-04-09 - 2015-04-09
Versions
- Version (Date)
- #1 (2017-08-23 10:03:38 UTC+0000, Updated: 2017-08-23 11:03:37 UTC+0000)
- Newer/Last version(s)
