- DOI
- 10.26302/SSHADE/EXPERIMENT_KD_20220331
- Data reference
- Demyk, Karine (2015): Optical constants of Mg-rich glassy silicates (1-x)MgO-xSiO2, 10-300 K, UV-mm range. SSHADE/STOPCODA (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_KD_20220331
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

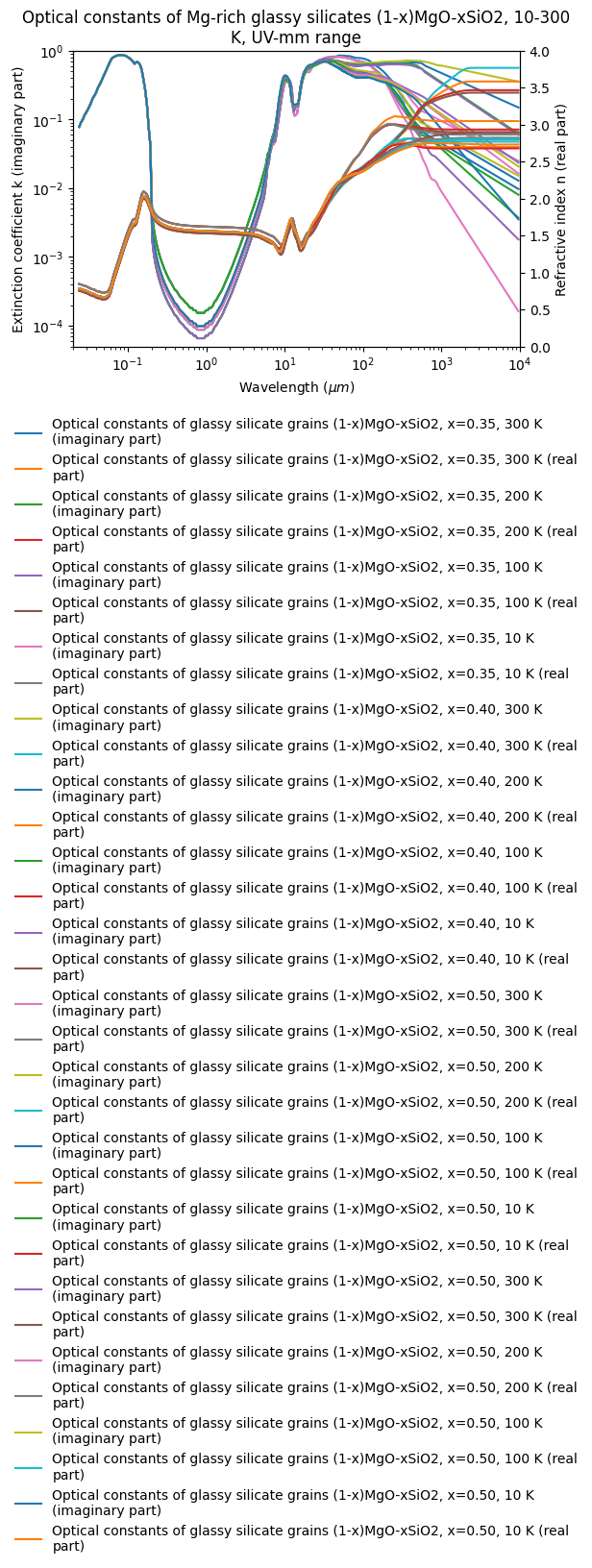

- UV to mm optical constants of four Mg-rich glassy silicates (1-x)MgO-xSiO2, x=0.35, 0.40 and 0.50 (two samples), at 10, 100, 200 and 300 K. The optical constants are calculated from mass absorption coefficients measured in the 5 - 1000 µm (2000-10 cm-1) range and extrapolated in the range 0.024 - 5 µm and 1000 - 100000 µm.
- Number of spectra
- 16
- Variable type(s)
-
- temperature
- spectrum type
- Comments
- The grain temperature is varied from 10 K to 300 K.
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- UV, Vis, NIR, MIR, FIR, sub-mm, mm, cm
- Valid spectral range(s)
-
Min - Max (${\mu}m$) Sampling (${\mu}m$) Resolution (${\mu}m$) Position accuracy (${\mu}m$) Absorption edge #1 0.024 - 100000.0 - Comments
- Spectra measured in the 5 - 1000 µm (2000-10 cm-1) range with a resolution of 2cm-1 above 300cm-1 and 1cm-1 below. The optical constants are extrapolated in the range 0.024 - 5 µm and 1000 - 100000 µm.
- Comments
- transmission
- Observation mode
- single spot
- Parent experiment
- Mass Absorption Coefficient of 4 Mg-rich glassy silicates (1-x)MgO-xSiO2, 10 - 300 K
- Date begin - end
- 2015-04-09 - 2015-04-09
Versions
- Release date
- 2022-05-31 13:17:13 UTC+0000
- Version (Date)
- #1 (2022-05-31 13:17:13 UTC+0000, Updated: 2022-11-04 11:17:11 UTC+0000)
