- Instrument

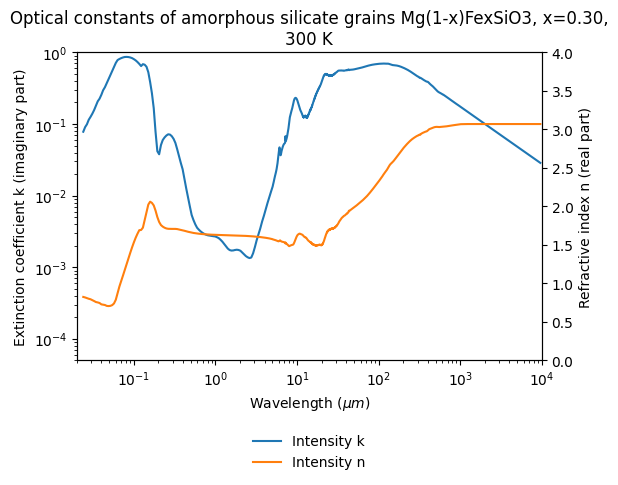

- Kramers-Kronig calculation of optical constant and numerical extrapolation from UV to cm
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 0.024 - 100000.0 ${\mu}m$
- Spatial observation mode
- single spot
- Name
- Amorphous silicate Mg$_{(1-x)}$Fe$_x$SiO$_3$, x=0.3, HDPE and KBr pellets
- Texture
- compact
- Thickness
- 2.0 $\pm$ 0.4 $mm$
- Temperature
- 300.0 $\pm$ 2.0 $K$
References
- Data reference
- Demyk, Karine (2015): Optical constants of Mg- and Fe-rich amorphous silicate Mg$_{(1-x)}$Fe$_x$SiO$_3$, x=0.1 - 0.2 - 0.3 - 0.4, 10-300 K, UV-mm range. SSHADE/STOPCODA (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_KD_20220525
- Publications
