- Title
- Vis-NIR reflectance spectra (i=0°, e=30° and 60°) of 4 lunar soils (Appolo 15, 16, 17) under ambient conditions
- DOI
- 10.26302/SSHADE/EXPERIMENT_LB_20180503_001
- Data reference
- Beck, Pierre; Potin, Sandra (2018): Vis-NIR reflectance spectra (i=0°, e=30° and 60°) of 4 lunar soils (Appolo 15, 16, 17) under ambient conditions. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20180503_001
- Comments
- unpublished
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

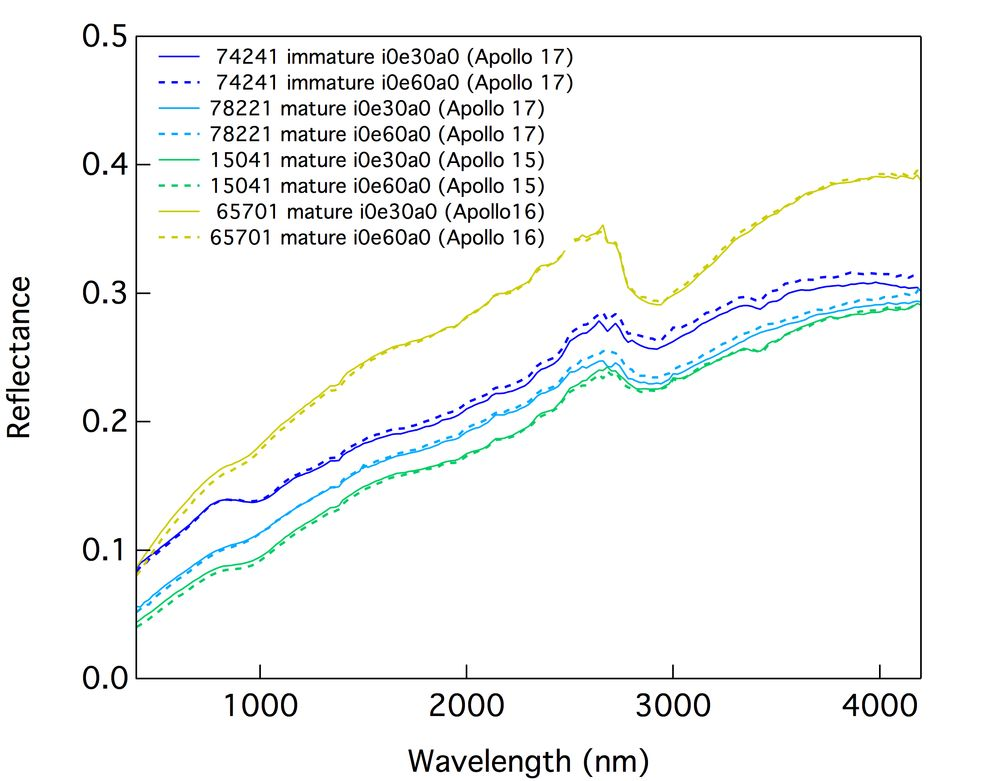

- Visible Near-IR reflectance spectra (i=0°, e=30° and e=60°) of 4 lunar soils: 15041 (Appolo 15), 65701 (Appolo 16), 74241 (Appolo 17) and 78221 (Appolo 17), under ambient conditions acquired with SHADOWS spectro-gonio radiometer @ IPAG
- Number of spectra
- 8
- Variable type(s)
-
- emergence angle
- Comments
- 2 emergence angles: e=30° and e=60° (i=0°)
- Instrument
- SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
- Sample holder
- open sample holder (7mm diameter, 1 mm deep) in anodized aluminum (not blackened)
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- NIR
- Valid spectral range(s)
-
Min - Max ($nm$) Sampling ($nm$) Resolution ($nm$) Position accuracy ($nm$) Absorption edge #1 400.0 - 660.0 20.0 3.85 0.25 #2 680.0 - 1480.0 20.0 7.7 0.5 #3 1500.0 - 2980.0 20.0 15.4 1.0 #4 3000.0 - 4200.0 20.0 30.9 2.0
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- bidirectional
- Observation mode
- one variable angle
- Resolution illumination
- 2.9°
- Resolution observation
- 2.05°
Illumination
Observation
- Comments
- partial polarization variable with wavelength (from monochromator grating)
- Observation mode
- single spot
- Image size
- 5.2 x 5.2 $mm$
- Date begin - end
- 2018-04-03 - 2018-04-03
Versions
- Release date
- 2018-05-04 11:48:28 UTC+0000
- Version (Date)
- #1 (2018-05-04 11:48:28 UTC+0000, Updated: 2021-02-05 10:32:13 UTC+0000)
