- Title

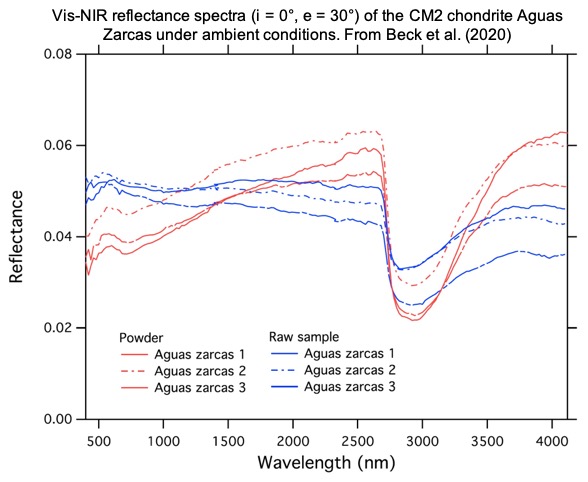

- Vis-NIR reflectance spectra (i = 0°, e = 30°) of three lithologies (raw + powder) of the CM2 chondrite Aguas Zarcas under ambient conditions
- DOI
- 10.26302/SSHADE/EXPERIMENT_LB_20200914_001
- Data reference
- Beck, Pierre (2019): Vis-NIR reflectance spectra (i = 0°, e = 30°) of three lithologies (raw + powder) of the CM2 chondrite Aguas Zarcas under ambient conditions. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20200914_001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description
- Vis-NIR reflectance spectra (i = 0°, e = 30°) of 3 different lithologies (raw and powdered samples) of the CM2 chondrite Aguas Zarcas under ambient conditions
- Number of spectra
- 6
- Variable type(s)
-
- sample composition
- sample texture
- Instrument
- SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
- Sample holder
- open sample holder (13 mm diameter, 2 mm deep) in anodized aluminum (not blackened)
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- Vis, NIR
- Valid spectral range(s)
-
Min - Max ($nm$) Sampling ($nm$) Resolution ($nm$) Position accuracy ($nm$) Absorption edge #1 400.0 - 660.0 20.0 4.8 #2 680.0 - 1480.0 20.0 9.5 #3 1500.0 - 2980.0 20.0 19.0 #4 3000.0 - 4200.0 20.0 38.6 - Comments
- Measured over the 340-4200nm range
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- bidirectional
- Observation mode
- fixed angles
- Incidence angle
- 0.0°
- Emergence angle
- 30.0°
- Azimuth angle
- 0.0°
- Phase angle
- 30.0°
- Resolution illumination
- 5.8°
- Resolution observation
- 4.1°
Illumination
Observation
- Comments
- partial polarization variable with wavelength (from monochromator grating)
- Observation mode
- single spot
- Image size
- 5.2 x 5.2 $mm$
- Date begin
- 2019-05-01
Versions
- Release date
- 2020-09-28 09:14:31 UTC+0000
- Version (Date)
- #1 (2020-09-28 09:14:31 UTC+0000, Updated: 2020-09-28 09:14:31 UTC+0000)
- Sponsors
-
- European Commission - Horizon 2020 (EC-H2020) (ERC grant agreement no. 771691 (Solarys))
