- Title

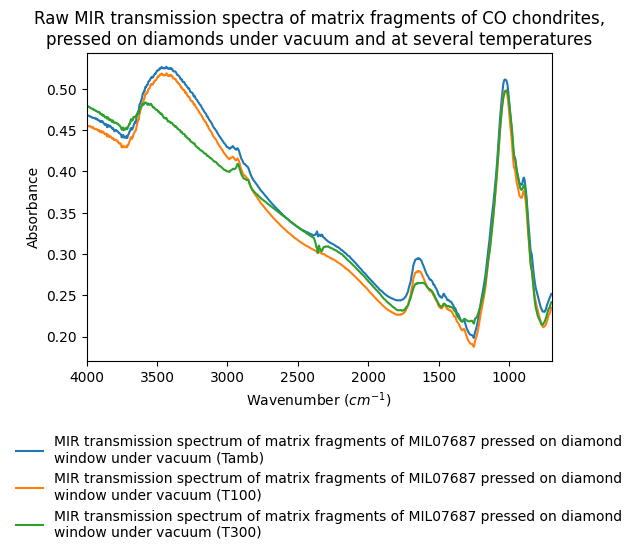

- Raw MIR transmission spectra of matrix fragments of CO chondrites, pressed on diamonds under vacuum and at several temperatures
- DOI
- 10.26302/SSHADE/EXPERIMENT_LB_20201001_001
- Data reference
- Prestgard, Trygve; Bonal, Lydie (2019): Raw MIR transmission spectra of matrix fragments of CO chondrites, pressed on diamonds under vacuum and at several temperatures. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20201001_001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description
- MIR spectra of several matrix fragments of DOM 08006, MIL 07687, LAP 031117, DOM 03238, and Kainsaz CO chondrites under vacuum and at ambient temperature, 100°C and 300°C
- Number of spectra
- 68
- Variable type(s)
-
- sample composition
- chemical variability
- temperature
- Instrument
- Brucker Vertex 70 + Hyperion 3000 – micro-transmission Mid-IR
- Sample holder
- The diamond windows were loaded into a cell, enabling temp. up to 300C under vacuum (from 10-4 mbar down to 10-7 mbar). Optical access is permitted from both sides of the cell through KBr windows, thus enabling measurements in transmission.
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 600.0 - 4000.0 1.928 4.0 0.05
- Observation mode
- single spot
- Spots number
- 1
- Objective type
- x15
- Pixels number
- 1 x 1
- Image size
- 40.0 x 40.0 ${\mu}m$
- Spatial resolution
- 3.0 ${\pm}$ 1.0 ${\mu}m$
- Comments
- the typical size of the spot on the sample was 40 microns x 40 microns
- Date begin
- 2019-05-01
Versions
- Release date
- 2022-10-13 13:26:48 UTC+0000
- Version (Date)
- #1 (2022-10-13 13:26:48 UTC+0000, Updated: 2022-10-13 13:26:48 UTC+0000)
