- Title
- MIR absorbance spectra of CO ice at 25K for different deposition rates and different thicknesses
- DOI
- 10.26302/SSHADE/EXPERIMENT_NF_20180503_2100
- Data reference
- Fray, Nicolas; Bouilloud, Michaëlle (2012): MIR absorbance spectra of CO ice at 25K for different deposition rates and different thicknesses. SSHADE/SCOOP (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_NF_20180503_2100
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

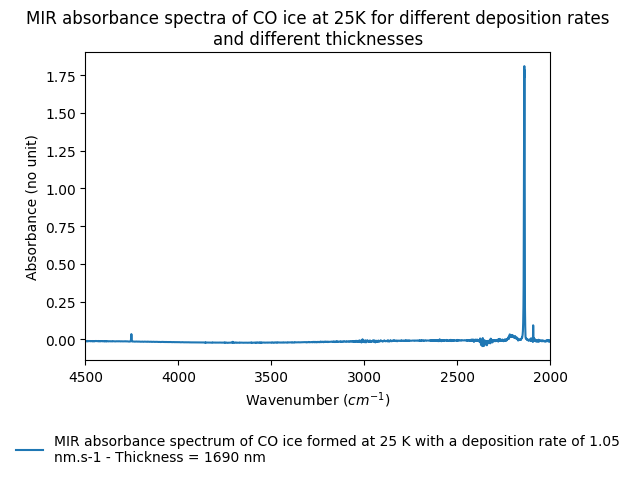

- MIR absorbance spectra of CO ice at 25K for different deposition rates (0.04-1.05 nm/s) and different thicknesses (90-4630 nm)
- Number of spectra
- 17
- Variable type(s)
-
- sample thickness
- formation condition
- Comments
- 3 different formation rates have been tested
- Instrument
- Brüker Vertex 70 - transmission - MIR
- Sample holder
- CsI window cooled by He cryostat in UHV chamber
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 950.0 - 4800.0 0.48226 1.0 0.05 - Comments
- spectra have been measured over the 800-4800 cm-1 range
- Observation mode
- single spot
- Date begin - end
- 2012-11-06 - 2012-11-06
Versions
- Release date
- 2018-12-13 11:50:03 UTC+0000
- Version (Date)
- #1 (2018-12-13 11:50:03 UTC+0000, Updated: 2022-04-30 12:14:45 UTC+0000)
