Experiment
Title

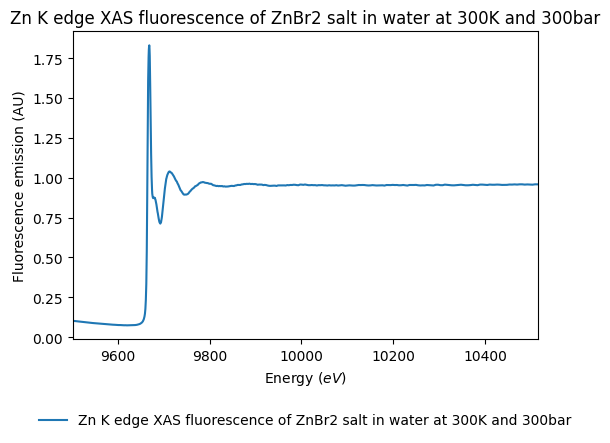

Zn K edge XAS fluorescence of ZnBr2 salt in water at 300K and 300bar
DOI
10.26302/SSHADE/EXPERIMENT_OP_20050205_001
Data reference
Testemale, Denis; Proux, Olivier (2005): Zn K edge XAS fluorescence of ZnBr2 salt in water at 300K and 300bar. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20050205_001
Type(s)
laboratory measurement
Number of spectra
1
Comments
These data were acquired on the BM30 beamline in the frame of the 30-02-682 proposal.
Variable type(s)
  • no
Instrument
X-ray Absorption Spectroscopy measured in fluorescence mode
Sample holder
Institut Néel autoclave, see Testemale et al., Rev. Sci. Instrum., 2005.
Standard medium
unknown
Observation mode
spectrum
Spectral range type(s)
hard X
Valid spectral range(s)
Min - Max (eV) Sampling (eV) Resolution (eV) Position accuracy (eV) Absorption edge
#1 9501.62 - 10514.3 0.495 Zn (K: 9.6586 keV)
Comments
The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the absorption edge of a reference: Zn metallic foil (first maximum of the derivative set at 9659 eV).
Observation geometry
directional
Observation mode
fixed angles
Comments
Emitted x-rays are collected in a solid angle directed at 90 degrees from the incident beam.
Observation mode
averaged
Date begin - end
2005-02-04 - 2005-02-15

Versions

Release date
2024-09-13 12:42:44 UTC+0000
Version (Date)
#1 (2024-09-13 12:42:44 UTC+0000, Updated: 2024-09-13 12:42:44 UTC+0000)
