- Title

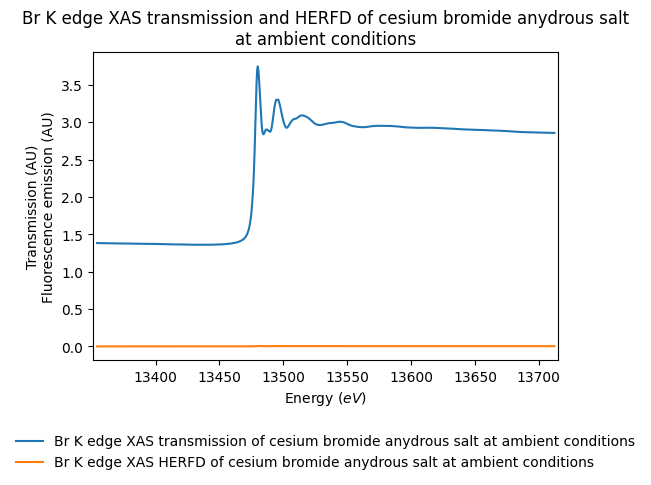

- Br K edge XAS transmission and HERFD of cesium bromide anydrous salt at ambient conditions
- DOI
- 10.26302/SSHADE/EXPERIMENT_OP_20180115_005
- Data reference
- Proux, Olivier; Irar, Mohammed (2015): Br K edge XAS transmission and HERFD of cesium bromide anydrous salt at ambient conditions. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20180115_005
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 2
- Variable type(s)
-
- observation mode
- Standard medium
- unknown
- Observation mode
- spectrum
- Spectral range type(s)
- hard X
- Valid spectral range(s)
-
Min - Max ($eV$) Sampling ($eV$) Resolution ($eV$) Position accuracy ($eV$) Absorption edge #1 13351.0 - 13715.0 0.7 $Br$ (K: 14.3256 $keV$) - Comments
- The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the L2 spectrum of a reference Pt metallic foil (first maximum of the derivative set at 13273 eV).
- Observation mode
- single spot
- Standard medium
- unknown
- Observation mode
- spectrum
- Spectral range type(s)
- hard X
- Valid spectral range(s)
-
Min - Max ($eV$) Sampling ($eV$) Resolution ($eV$) Position accuracy ($eV$) Absorption edge #1 13351.0 - 13715.0 0.7 $Br$ (K: 14.3256 $keV$) - Comments
- The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the L2 spectrum of a reference Pt metallic foil (first maximum of the derivative set at 13273 eV). The resolution was 2.7eV (FWHM of the elastic peak).
- Observation mode
- single spot
- Date begin
- 2015-09-03
Versions
- Release date
- 2018-01-31 23:51:01 UTC+0000
- Version (Date)
- #1 (2018-01-31 23:51:01 UTC+0000, Updated: 2018-11-20 14:23:23 UTC+0000)
