Spectrum preview
Title

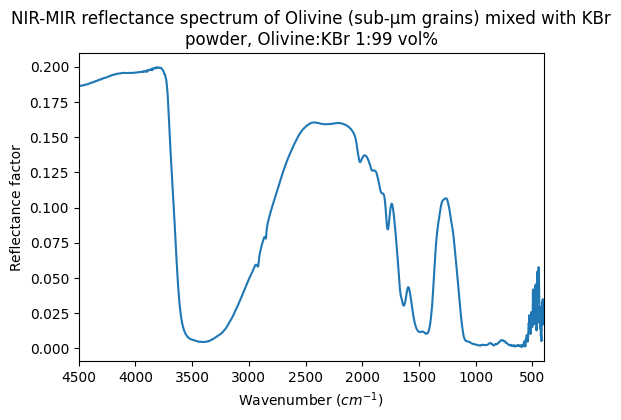

NIR-MIR reflectance spectrum of Olivine (sub-µm grains) mixed with KBr powder, Olivine:KBr 1:99 vol%
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2023-02-08 08:58:54 UTC+0000)
Instrument parameters
Instrument
Brucker Vertex 80V - UV-Vis-IR reflection
Spectral observation mode
spectrum
Valid spectral range(s)
400.0 - 4500.0 cm1
Observation geometry
biconical : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Olivine (sub-micrometre sized grains) mixed with KBr powder, Olivine:KBr 1:99 vol%
Texture
other
Thickness
3.0 ± 0.5 mm
Temperature
295.0 K
References
Data reference
Sultana, Robin (2019): NIR-MIR reflectance and emissivity spectra of powdered Olivine (sub-µm grains) mixed with KBr. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20230206_001
Publications
