- DOI
- 10.26302/SSHADE/EXPERIMENT_OP_20230220_001
- Data reference

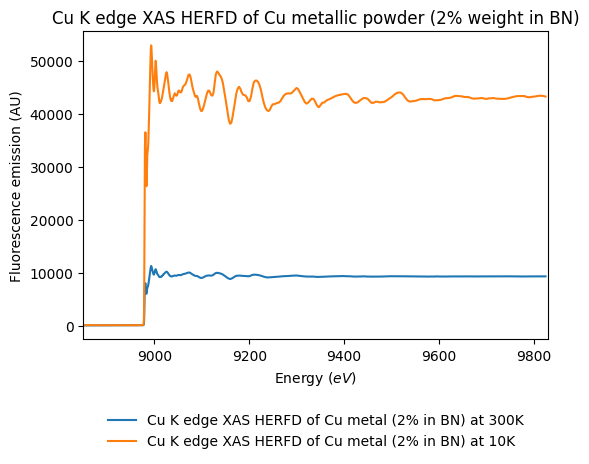

- Proux, Olivier (2023): Cu K edge XAS HERFD of Cu metallic powder (2% weight in BN). SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20230220_001
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 2
- Comments
- These data were acquired on the BM16 beamline in the frame of the BLC-14379 proposal.
- Variable type(s)
-
- temperature
- Instrument
- High Energy Resolution Fluorescence Detection X-ray Absorption Spectroscopy
- Sample holder
- simple holder
- Standard medium
- unknown
- Observation mode
- spectrum
- Spectral range type(s)
- hard X
- Valid spectral range(s)
-
Min - Max () Sampling () Resolution () Position accuracy () Absorption edge #1 8850.0 - 9830.0 0.46 (K: 8.9878 ) - Comments
- The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the absorption edge of a reference: Cu metallic foil (first maximum of the derivative set at 8979 eV). The resolution of the spectrometer analyser was 1.2 eV (FWHM of the elastic peak).
Definition: emergence angle is positive with origin at nadir. Azimuth origin (increasing clockwise) is arbitrary.
- Observation geometry
- directional
- Observation mode
- fixed angles
- Comments
- Emitted x-rays are collected in a solid angle directed at 90 degrees from the incident beam.
- Observation mode
- averaged
- Date begin - end
- 2023-02-16 - 2023-02-16
Versions
- Release date
- 2023-02-24 13:01:34+0000 UTC
- Version (Date)
- #2 (2023-02-24 13:01:34+0000 UTC)
- Older version(s)
