- DOI
- 10.26302/SSHADE/EXPERIMENT_OP_20250415_001
- Data reference

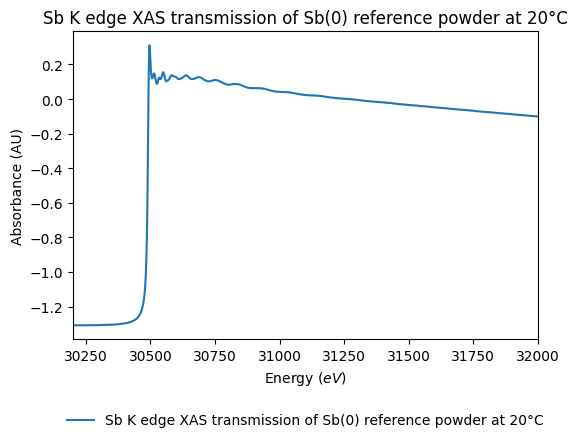

- Proux, Olivier; Maurin, Isabelle (2025): Sb K edge XAS transmission of Sb(0) reference powder at 20°C. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20250415_001
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 1
- Comments
- These data were acquired on the BM16 beamline in the frame of the BLC-16154 proposal.
- Variable type(s)
-
- no
- Instrument
- X-ray Absorption Spectroscopy measured in transmission mode
- Sample holder
- simple holder
- Standard medium
- unknown
- Observation mode
- spectrum
- Spectral range type(s)
- hard X
- Valid spectral range(s)
-
Min - Max () Sampling () Resolution () Position accuracy () Absorption edge #1 30200.0 - 32000.0 1.56 (K: 30.4912 ) - Comments
- The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the absorption edge of a reference: Sb metallic foil (first maximum of the derivative set at 30491 eV).
Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).
- Observation geometry
- direct
- Observation mode
- fixed angles
- Observation mode
- single spot
- Date begin
- 2025-04-15
Versions
- Release date
- 2025-04-23 14:47:12+0000 UTC
- Version (Date)
- #1 (2025-04-23 14:47:12+0000 UTC, Updated: 2025-04-23 14:47:12+0000 UTC)
