- DOI
- 10.26302/SSHADE/EXPERIMENT_PC_20220301_001
- Data reference

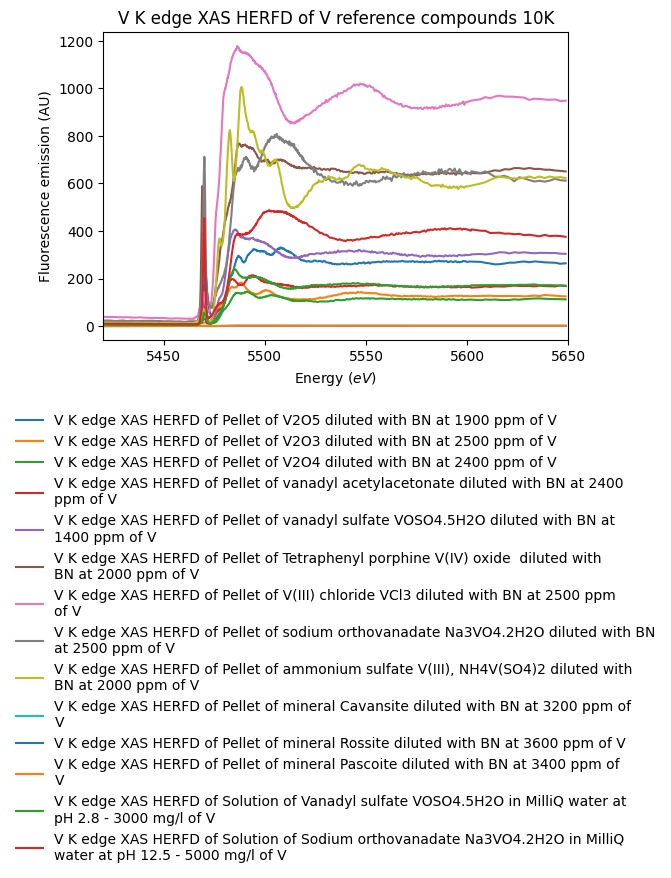

- Chaurand, Perrine; Couturier, Julien; Levard, Clément; De Pao Mendonca, Kassandra (2021): V K edge XAS HERFD of V reference compounds 10K. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_PC_20220301_001
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 14
- Comments
- These data were acquired on the BM16 beamline in the frame of the EV-459 proposal.
- Variable type(s)
-
- sample composition
- Instrument
- High Energy Resolution Fluorescence Detection X-ray Absorption Spectroscopy
- Sample holder
- ESRF-Ricardo helium cryostat
- Standard medium
- unknown
- Observation mode
- spectrum
- Spectral range type(s)
- hard X
- Valid spectral range(s)
-
Min - Max ($eV$) Sampling ($eV$) Resolution ($eV$) Position accuracy ($eV$) Absorption edge #1 5420.0 - 5650.0 0.28 $V$ (K: 5.4651 $keV$) - Comments
- The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the absorption edge of a reference: V metallic foil (first maximum of the derivative set at 5465 eV).
Definition: emergence angle is positive with origin at nadir. Azimuth origin (increasing clockwise) is arbitrary.
- Observation geometry
- directional
- Observation mode
- fixed angles
- Comments
- Emitted x-rays are collected in a solid angle directed at 90 degrees from the incident beam.
- Observation mode
- averaged
- Date begin - end
- 2021-07-07 - 2021-07-13
Versions
- Release date
- 2022-09-01 07:25:31 UTC+0000
- Version (Date)
- #1 (2022-09-01 07:25:31 UTC+0000, Updated: 2022-09-01 07:25:31 UTC+0000)
