- Title

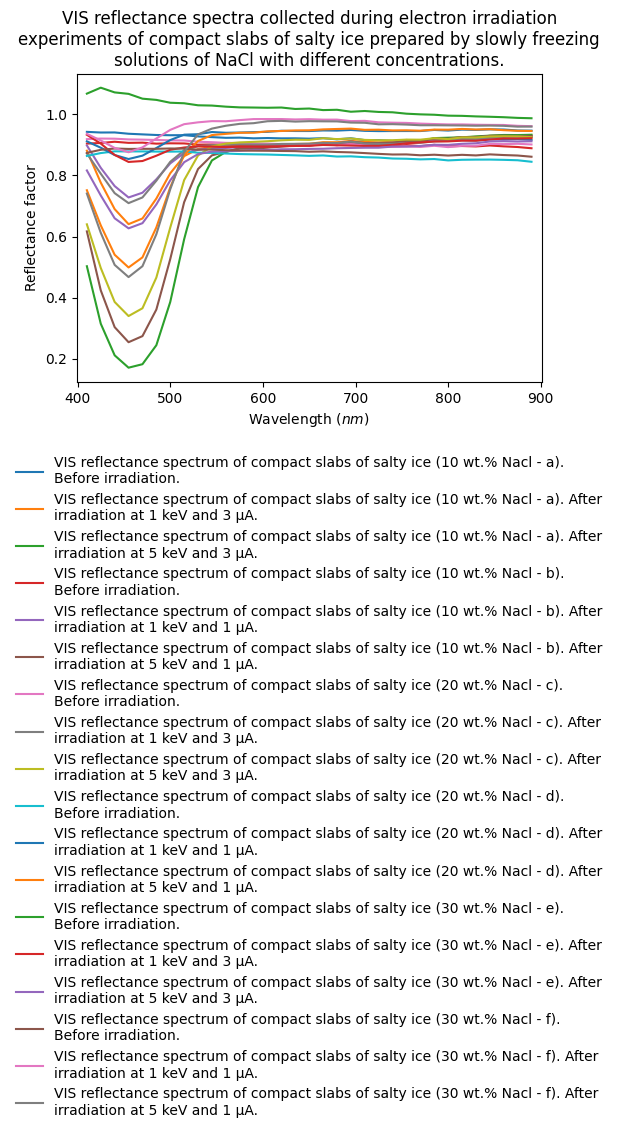

- VIS reflectance spectra collected during electron irradiation experiments of compact slabs of salty ice prepared by slowly freezing solutions of NaCl with different concentrations.
- DOI
- 10.26302/SSHADE/EXPERIMENT_RC_20200622_000
- Data reference
- Cerubini, Romain (2020): VIS reflectance spectra collected during electron irradiation experiments of compact slabs of salty ice prepared by slowly freezing solutions of NaCl with different concentrations.. SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_RC_20200622_000
- Publications
- Comments
- This experiment corresponds directly to Fig. 7 in the article.
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

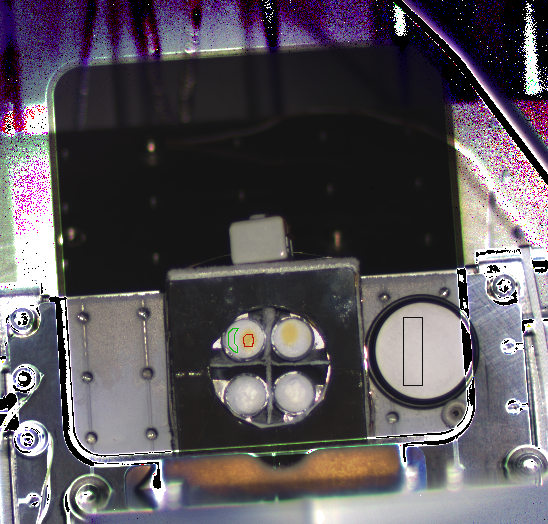

- Spherical salty ice particles are produced by spraying droplets of NaCl solutions into liquid nitrogen with the SPIPA-B setup and 9mm-thick samples are produced from this material. The samples are then introduced into the MEFISTO chamber, placed on a liquid nitrogen cooling plate, and the chamber is evacuated to high vacuum. The samples can then be bombarded with energetic electrons at different energies and fluxes and VIS hyperspectral images are collected.
- Number of spectra
- 18
- Variable type(s)
-
- sample composition
- irradiation energy
- irradiation dose
- Instrument
- MoHIS - Hyperspectral imaging system Vis-NIR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- Vis
- Valid spectral range(s)
-
Min - Max ($nm$) Sampling ($nm$) Resolution ($nm$) Position accuracy ($nm$) Absorption edge #1 410.0 - 890.0 15.0 6.5
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- biconical
- Observation mode
- fixed angles
- Incidence angle
- 5.0°
- Emergence angle
- 0.0°
- Azimuth angle
- 90.0°
- Phase angle
- 5.0°
- Observation mode
- roi averaged
- Date begin - end
- 2020-06-22 - 2020-06-25
Versions
- Release date
- 2023-07-31 13:29:36 UTC+0000
- Version (Date)
- #1 (2023-07-31 13:29:36 UTC+0000, Updated: 2023-07-31 13:29:36 UTC+0000)
- Sponsors
-
- Swiss National Science Fundation (SNSF)
