- DOI
- 10.26302/SSHADE/EXPERIMENT_SB_20200608_001
- Data reference

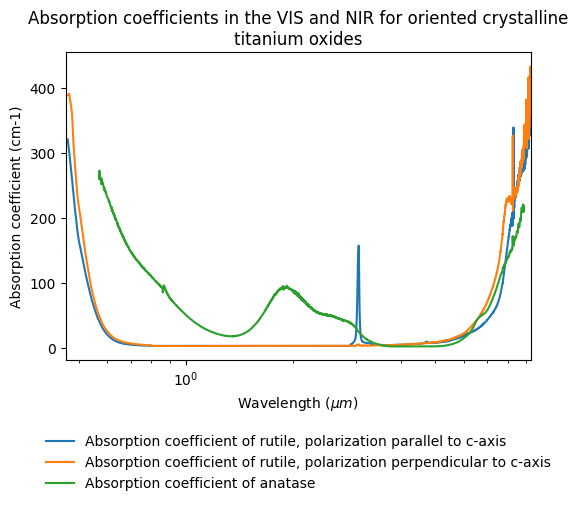

- Zeidler, Simon; Posch, Thomas; Mutschke, Harald; Richter, Hannes; Wehrhan, Ortrud (2003): Absorption coefficients in the VIS and NIR for oriented crystalline titanium oxides. SSHADE/DOCCD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_SB_20200608_001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 3
- Variable type(s)
-
- polarization
- Instrument
- Lambda 19 – transmission vis
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- Vis
- Valid spectral range(s)
-
Min - Max (${\mu}m$) Sampling (${\mu}m$) Resolution (${\mu}m$) Position accuracy (${\mu}m$) Absorption edge #1 0.319 - 0.86
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- specular
- Observation mode
- fixed angles
- Incidence angle
- 0.0°
- Emergence angle
- 0.0°
- Resolution illumination
- 6.0°
- Resolution observation
- 6.0°
Illumination
- Type of polarization
- no
Observation
- Type of polarization
- linear
- Type of polarizer
- dichroic sheet polarizer
- Polarization angle
- 0.0°
- Comments
- parallel to the crystallographic axes of the crystal
- Observation mode
- single spot
- Spatial resolution
- 1.5 $mm$
- Instrument
- Lambda 19 – transmission NIR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- NIR
- Valid spectral range(s)
-
Min - Max (${\mu}m$) Sampling (${\mu}m$) Resolution (${\mu}m$) Position accuracy (${\mu}m$) Absorption edge #1 0.86 - 2.0
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- specular
- Observation mode
- fixed angles
- Incidence angle
- 0.0°
- Emergence angle
- 0.0°
- Resolution illumination
- 6.0°
- Resolution observation
- 6.0°
Illumination
- Type of polarization
- no
Observation
- Type of polarization
- linear
- Type of polarizer
- dichroic sheet polarizer
- Polarization angle
- 0.0°
- Comments
- parallel to the crystallographic axes of the crystal
- Observation mode
- single spot
- Spatial resolution
- 1.5 $mm$
- Instrument
- BRUKER 113v – transmission Mid-IR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max (${\mu}m$) Sampling (${\mu}m$) Resolution (${\mu}m$) Position accuracy (${\mu}m$) Absorption edge #1 1.6 - 10.0
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- specular
- Observation mode
- fixed angles
- Incidence angle
- 0.0°
- Emergence angle
- 0.0°
- Resolution illumination
- 6.0°
- Resolution observation
- 6.0°
Illumination
- Type of polarization
- no
Observation
- Type of polarization
- linear
- Type of polarizer
- wire-grid polarizer (KRS5)
- Polarization angle
- 0.0°
- Comments
- parallel to the crystallographic axes of the crystal
- Observation mode
- single spot
- Spatial resolution
- 1.5 $mm$
- Date begin
- 2003-09-01
Versions
- Release date
- 2020-07-09 08:22:36 UTC+0000
- Version (Date)
- #1 (2020-07-09 08:22:36 UTC+0000, Updated: 2020-07-09 08:22:36 UTC+0000)
