- DOI
- 10.26302/SSHADE/EXPERIMENT_TG_20180503_001
- Data reference
- Mahjoub, Ahmed (2011): Vis-VNIR optical indices of 4 Tholins films. SSHADE/SPAN (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_TG_20180503_001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

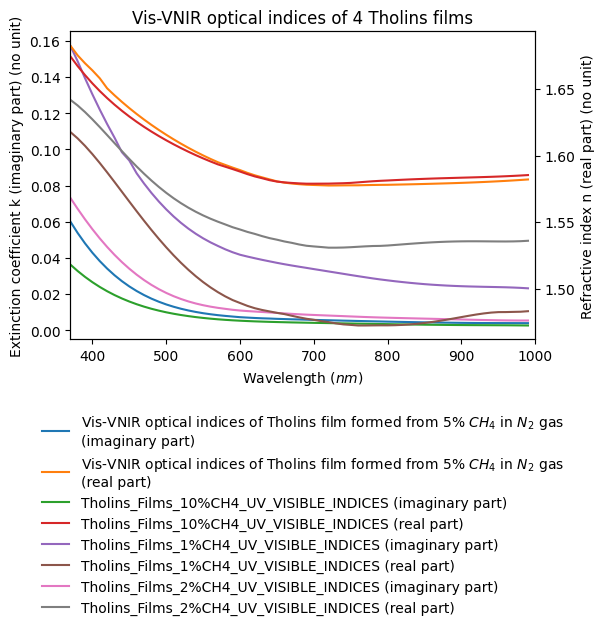

- Set of Visible-Very Near IR optical indices of tholins films formed with different $CH_4$ percentages in $N_2$ gas: 1%, 2%, 5%, 10%
- Number of spectra
- 4
- Variable type(s)
-
- sample composition
- Comments
- Variation of the inital methane percentage in nitrogen during tholins synthesis
- Instrument
- UV-NIR ellipsometry
- Standard medium
- air
- Observation mode
- spectrum
- Spectral range type(s)
- Vis
- Valid spectral range(s)
-
Min - Max ($nm$) Sampling ($nm$) Resolution ($nm$) Position accuracy ($nm$) Absorption edge #1 370.0 - 1000.0 10.0
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- specular
- Observation mode
- fixed angles
- Incidence angle
- 70.0°
- Emergence angle
- 70.0°
- Phase angle
- 140.0°
Illumination
- Type of polarization
- linear
Observation
- Type of polarization
- elliptic
- Observation mode
- single spot
- Image size
- 8.0 x 3.0 $None$
- Date begin - end
- 2011-01-31 - 2011-03-31
Versions
- Release date
- 2018-05-04 11:29:05 UTC+0000
- Version (Date)
- #2 (2018-05-04 11:29:05 UTC+0000, Updated: 2018-09-26 22:33:49 UTC+0000)
- Older version(s)
