- Title

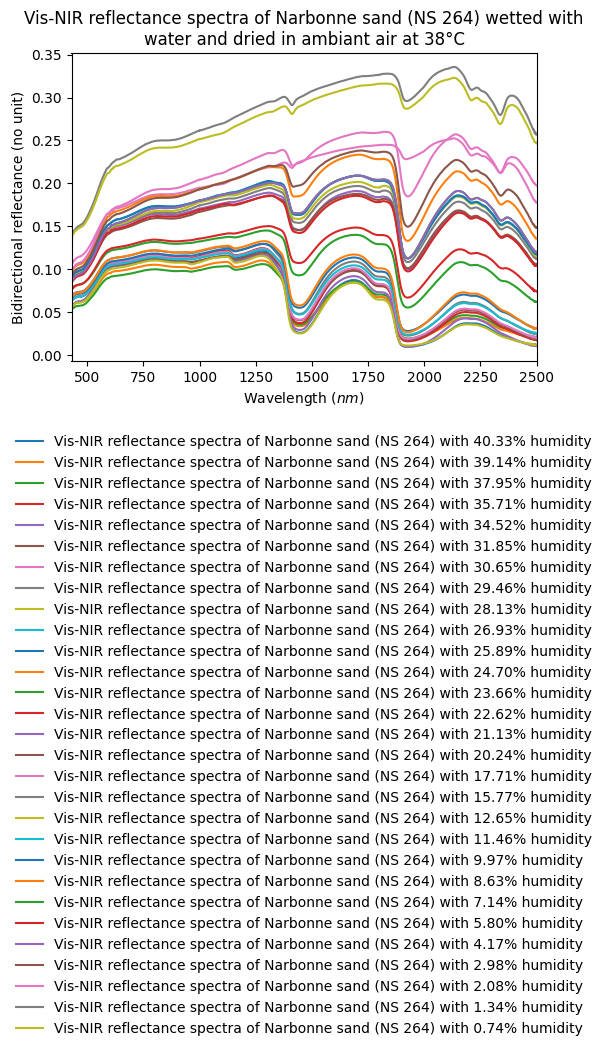

- Vis-NIR reflectance spectra of Narbonne sand (NS 264) wetted with water and dried in ambiant air at 38°C
- DOI
- 10.26302/SSHADE/EXPERIMENT_VC_20050728_001
- Data reference
- Carrère, Véronique (2005): Vis-NIR reflectance spectra of Narbonne sand (NS 264) wetted with water and dried in ambiant air at 38°C. SSHADE/SSTONE (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_VC_20050728_001
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description
- In order to investigate the spectral behavior of humidity on sand spectra, we have acquired laboratory reflectance spectra of a sand containing various proportion of water. Water was deposited on a dry sand (previously dried in an oven at 40°C during one night). During the experiment, the sample is then dried, under the sun at 38°C. A spectrum is acquired every 5 minutes with an ASD FieldSpec3FR. This experiment was done on Narbonne sand (NS 264)
- Number of spectra
- 29
- Variable type(s)
-
- sample abundance
- Comments
- Decreasing of humidity percentage in the sample
- Instrument
- ASD reflection VIS-NIR
- Sample holder
- Petri dish
- Standard medium
- unknown
- Observation mode
- spectrum
- Spectral range type(s)
- Vis, NIR
- Valid spectral range(s)
-
Min - Max ($nm$) Sampling ($nm$) Resolution ($nm$) Position accuracy ($nm$) Absorption edge #1 430.0 - 2500.0 1.0 1.0
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- bidirectional
- Observation mode
- fixed angles
- Incidence angle
- 0.0°
- Emergence angle
- 0.0°
- Azimuth angle
- 0.0°
- Phase angle
- 0.0°
- Observation mode
- single spot
- Date begin - end
- 2005-07-28 - 2005-07-28
Versions
- Release date
- 2018-01-31 23:51:01 UTC+0000
- Version (Date)
- #1 (2018-01-31 23:51:01 UTC+0000, Updated: 2019-06-05 09:28:23 UTC+0000)
