- Title

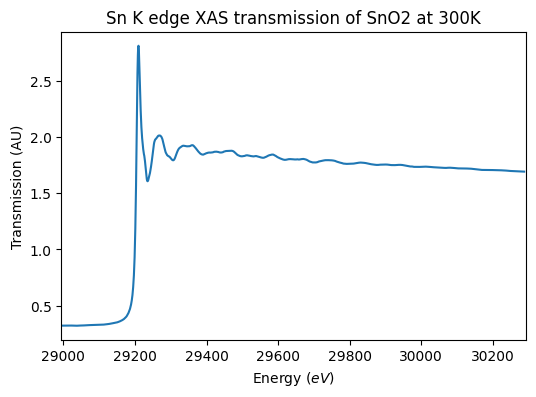

- Sn K edge XAS transmission of SnO2 at 300K
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- transmission
- Version
- #1 (2024-10-07 07:15:25 UTC+0000)
- Instrument
- X-ray Absorption Spectroscopy measured in transmission mode
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 28994.0 - 30294.0 $eV$
- Observation geometry
- direct :
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Pellet of SnO2 mixed with BN
- Origin
- commercial
- Texture
- compact poor grained
- Thickness
- 2.0 $\pm$ 0.5 $mm$
- Temperature
- 300.0 $\pm$ 278.15 $K$
- Pressure
- 1.0 $bar$
References
- Data reference
- Proux, Olivier; Gorczyca, Agnès (2014): Sn K edge XAS transmission of Sn compounds at 300K. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_AG_20140716_001
