- Title

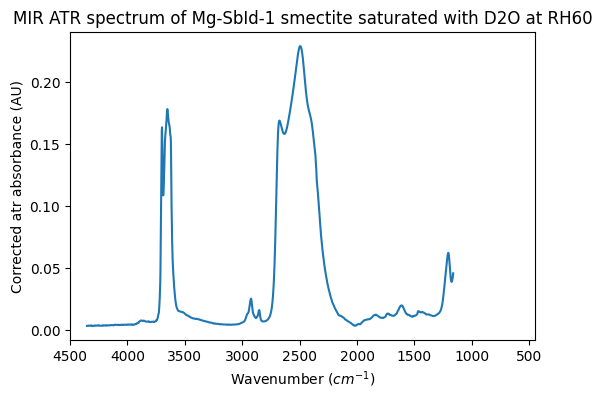

- MIR ATR spectrum of Mg-SbId-1 smectite saturated with D2O at RH60
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- corrected ATR absorbance
- Version
- #1 (2017-09-08 15:45:50 UTC+0000) [obsolete version]
A more recent version exists:
Version #2
[Previous version had incorrect spectral range]
- Instrument
- FTIR-ATR-MIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 450.0 - 4500.0 $cm^{-1}$
- Observation geometry
- specular : i=45.0° ; e=45.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Mg-exchanged smectite saturated with D2O at RH=60%
- Origin
- natural terrestrial
- Texture
- earthy
- Thickness
- 0.01 $\pm$ 0.005 $cm$
- Temperature
- 25.0 $\pm$ 3.0 $^{\circ}C$
- Fluid
-
- N2 5.0 AirProducts , 98.3 $\pm$ 0.5%
- D2O , 1.7 $\pm$ 0.5%
References
- Data reference
- Kuligiewicz, Artur; Derkowski, Arkadiusz; Gionis, Vassilis; Chryssikos, Georgios (2014): Mid-infrared attenuated total reflectance experiment with Mg2+ exchanged less 0.1 μm size fraction of beidellite (SbId-1) equilibrated with D2O vapor under variable relative humidity. SSHADE/LSD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_AK_20141116_1
