- Title

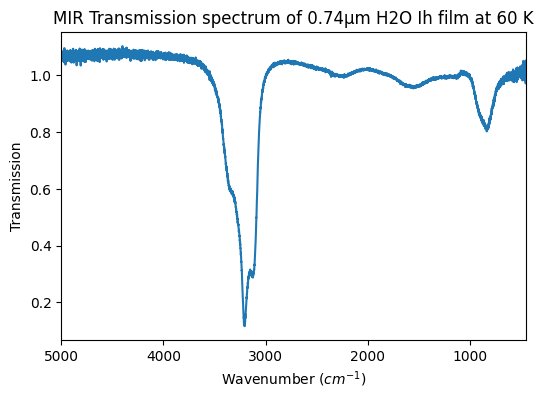

- MIR Transmission spectrum of 0.74µm H2O Ih film at 60 K
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- transmission
- Version
- #1 (2017-11-17 17:16:56 UTC+0000) [obsolete version]
A more recent version exists:
Version #2
[removed invalid range and slightly smoothed the noise]
- Instrument
- Nicolet 800 – transmission Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 450.0 - 5000.0 $cm^{-1}$
- Observation geometry
- direct : i=0.0° ; e=180.0° ; az=0.0° ; ph=180.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- H2O crystalline ice - deposition 145K
- Origin
- laboratory
- Texture
- compact fine grained
- Thickness
- 0.74 $\pm$ 0.02 ${\mu}m$
- Temperature
- 60.0 $\pm$ 0.1 $K$
References
- Data reference
- Schmitt, Bernard; Trotta, Frederic (1995): Mid-IR Transmission spectra of crystalline Ih H2O ice at different temperatures (145K to 17K). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20120924_001
