- Title

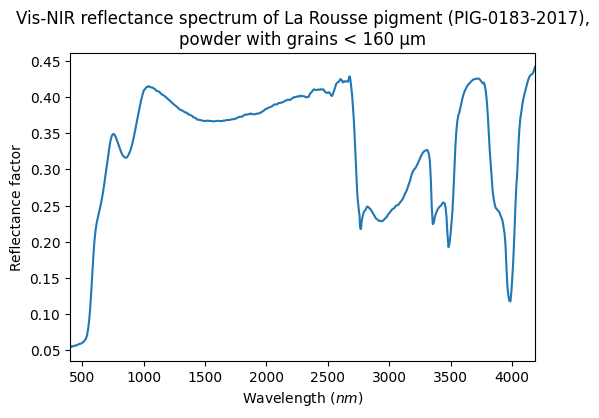

- Vis-NIR reflectance spectrum of La Rousse pigment (PIG-0183-2017), powder with grains < 160 µm
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2020-05-31 19:13:10 UTC+0000)
- Instrument
- SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 402.0 - 650.0 $nm$
- Observation geometry
- bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- SHINE Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 654.0 - 1426.0 $nm$ ; 1430.0 - 3198.0 $nm$ ; 3202.0 - 4186.0 $nm$
- Observation geometry
- bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Pigment La Rousse (PIG-0183-2017), red crinoidal limestone - powder grains inf. 160µm
- Texture
- pulverulent
- Thickness
- 4.0 $\pm$ 0.2 $mm$
- Temperature
- 298.0 $\pm$ 1.0 $K$
References
- Data reference
- Schmitt, Bernard; Chalmin-Aljanabi, Emilie (2019): Vis-NIR reflectance spectra of La Rousse pigments (PIG-0183-2017): powder, raw block, and polished slice. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20200217_100
