Vis-NIR reflectance spectrum of Bordezac pigment (Pig_0160_D_101), raw block #1, face #1
- Title
- Vis-NIR reflectance spectrum of Bordezac pigment (Pig_0160_D_101), raw block #1, face #1
- DOI
- 10.26302/SSHADE/EXPERIMENT_BS_20200422_100
- Data reference
- Schmitt, Bernard; Chalmin-Aljanabi, Emilie; Chassin de Kergommeaux, Aurélie (2019): Vis-NIR reflectance spectra of Bordezac pigments (Pig_0160_D): blocks, powders, plots and painted matters. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20200422_100
- Publications
-
- Comments
- unpublished
- Database
- Experimentalists
- Experiment type
- laboratory measurement
- Type
- reflectance factor
- Instrument
- SHINE Spectro-Gonio bidirectional reflection Vis-NIR
- Sample holder
- cylindrical raw aluminium sample holder (D=18mm, d=4.5mm) for powder
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- Vis, NIR
- Valid spectral range(s)
-
Min - Max ($nm$) Sampling ($nm$) Resolution ($nm$) Position accuracy ($nm$) Absorption edge #1 510.0 - 590.0 10.0 2.1 0.1 #2 600.0 - 1420.0 10.0 9.5 0.5 #3 1430.0 - 2900.0 10.0 19.0 1.0 - Filters
-
Type Center/Edge ($nm$) Width ($nm$) Place #1 several high frequency filters output of monochromator - Scan number
- 10
- Comments
- measured over the 510-2900nm range
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- bidirectional
- Observation mode
- fixed angles
- Incidence angle
- 0.0°
- Emergence angle
- 30.0°
- Azimuth angle
- 0.0°
- Phase angle
- 30.0°
- Resolution illumination
- 5.8°
- Resolution observation
- 4.1°
Illumination
Observation
- Comments
- some wavelength dependent polarization
- Observation mode
- single spot
- Resolutions
- 7.5 ${\pm}$ 0.2 $mm$
- Comments
- illumination with 9 fiber optic spots within 7.5 mm diameter, observation within an ellipse of 23x20 mm
- Name

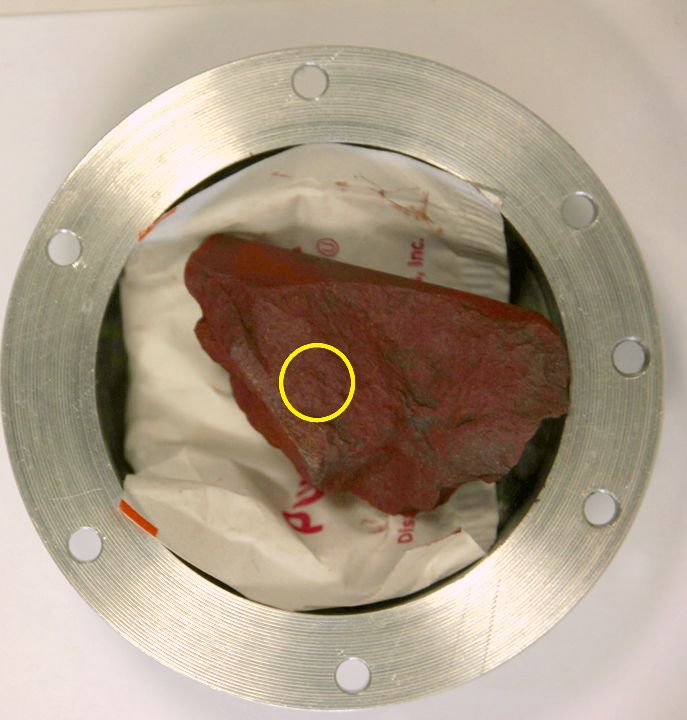

- Pigment Bordezac facies D (Pig_0160_D_101), raw block #1
- Comments
- measured on the slightly domed polished face, homogeneous dark brick red
- Experiment
- Vis-NIR reflectance spectra of Bordezac pigments (Pig_0160_D): blocks, powders, plots and painted matters
- Date begin
- 2019-10-03
- Release date
- 2020-08-28 04:51:43 UTC+0000
- Version (Date)
- #1 (2020-08-28 04:51:43 UTC+0000, Updated: 2021-05-08 14:16:39 UTC+0000)
- History
-
Date Mode Version Status Comments 2020-05-30 20:03:34 UTC+0000 first import #1 valid version
- Analysis
- raw bidirectional reflectance spectrum calibrated: 1) with "Spectralon 99%" measured under same geometry using its absolute BRDF (0.50-2.1 µm) and 2) with "Infragold" using its relative spectral reflectance (2.1-2.9 µm). The residual water vapor lines, around 1.12, 1.38, 1.87, 2.665 µm, have been corrected by multiplying by a scaled water vapor transmission spectrum measured at same resolution and sampling. A very slight smoothing (binomial over 3 points) has been applied, except in the narrow absorption band.
- Quality flag
- 4
