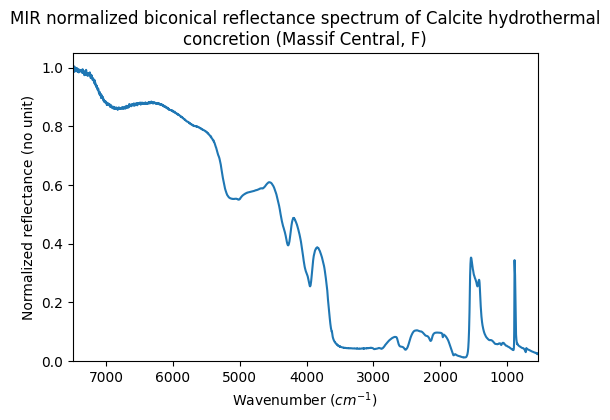

Spectrum preview
Title
MIR normalized biconical reflectance spectrum of Calcite hydrothermal concretion (Massif Central, F)
Database
Experiment type
laboratory measurement
Spectrum type
normalized reflectance
Version
#1 (2022-08-19 19:39:50 UTC+0000)
Instrument parameters
Instrument
Brucker Vertex 70 #2 – reflection Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
540.0 - 7500.0 $cm^{-1}$
Observation geometry
biconical : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Calcite hydrothermal concretion
Origin
natural terrestrial
Texture
compact fine grained
Thickness
2.0 $\pm$ 0.1 $mm$
Temperature
18.0 $\pm$ 2.0 $^{\circ}C$
References
Data reference
Schmitt, Bernard; Leclef, Apolline; Montagnac, Gilles (2021): Calcite: Vis-NIR and Mid-IR diffuse reflectance, MIR specular reflectance and Raman spectra of powders and blocks. SSHADE/DRIMS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20220803_001
