- Title

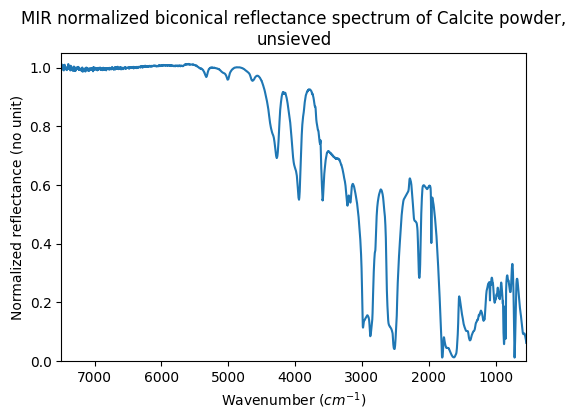

- MIR normalized biconical reflectance spectrum of Calcite powder, unsieved
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- normalized reflectance
- Version
- #1 (2022-08-19 19:39:50 UTC+0000)
- Instrument
- Brucker Vertex 70 #2 – reflection Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 550.0 - 7500.0 cm−1
- Observation geometry
- biconical : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Calcite powder (unsieved)
- Texture
- loose fine grained
- Thickness
- 3.0 ± 0.1 mm
- Temperature
- 18.0 ± 2.0 ∘C
References
- Data reference
- Schmitt, Bernard; Leclef, Apolline; Montagnac, Gilles (2021): Calcite: Vis-NIR and Mid-IR diffuse reflectance, MIR specular reflectance and Raman spectra of powders and blocks. SSHADE/DRIMS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20220803_001
