- Title

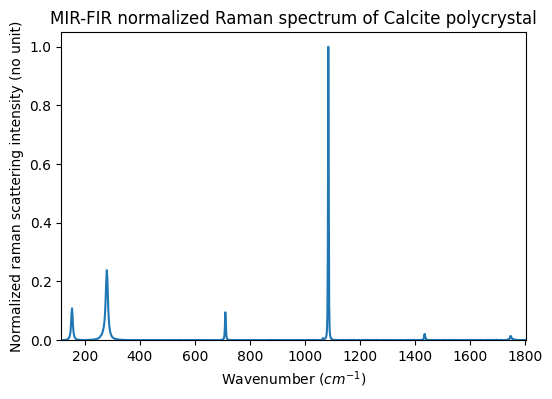

- MIR-FIR normalized Raman spectrum of Calcite polycrystal
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- normalized Raman scattering intensity
- Version
- #1 (2022-08-19 19:39:50 UTC+0000)
- Instrument
- Micro-Raman LabRam HR800 - 532 nm
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 115.0 - 1805.0 $cm^{-1}$
- Observation geometry
- confocal : i=0.0° ; e=0.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Calcite polycrystal
- Texture
- compact crystal
- Temperature
- 18.0 $\pm$ 2.0 $^{\circ}C$
References
- Data reference
- Schmitt, Bernard; Leclef, Apolline; Montagnac, Gilles (2021): Calcite: Vis-NIR and Mid-IR diffuse reflectance, MIR specular reflectance and Raman spectra of powders and blocks. SSHADE/DRIMS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20220803_001
