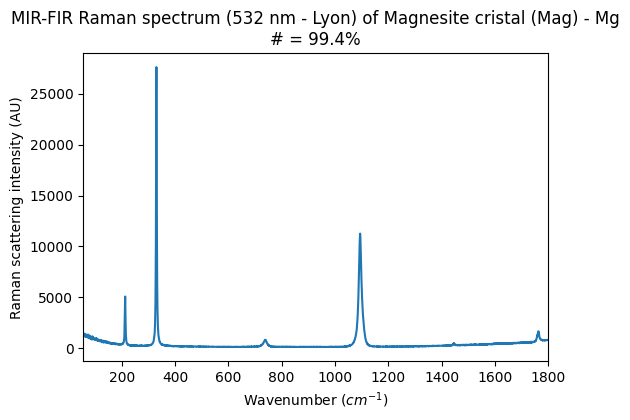

Spectrum preview
Title
MIR-FIR Raman spectrum (532 nm - Lyon) of Magnesite cristal (Mag) - Mg # = 99.4%
Database
Experiment type
laboratory measurement
Spectrum type
Raman scattering intensity
Version
#1 (2024-06-09 11:26:05 UTC+0000)
Instrument parameters
Instrument
Micro-Raman LabRam HR800 - 532 nm
Spectral observation mode
spectrum
Valid spectral range(s)
55.0 - 1800.0 $cm^{-1}$
Observation geometry
confocal : i=0.0° ; e=0.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Magnesite Brumado, Brésil (Mag) powder
Texture
loose fine grained
Thickness
1.0 $\pm$ 0.25 $mm$
Temperature
295.0 $\pm$ 5.0 $^{\circ}C$
References
Data reference
Beck, Pierre; Beyssac, Olivier; Schmitt, Bernard (2023): Near and Mid-IR reflectance, Mid-IR transmission and Raman emission spectra of a series of Fe-Mg carbonates along the Siderite-Magnesite solid solution. SSHADE/DRIMS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20240605_001
