- Title

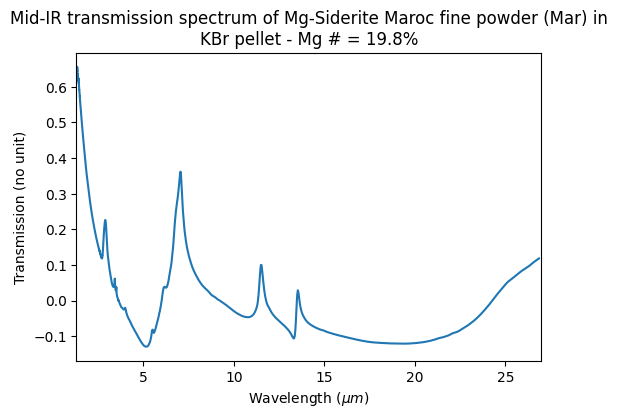

- Mid-IR transmission spectrum of Mg-Siderite Maroc fine powder (Mar) in KBr pellet - Mg # = 19.8%
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- transmission
- Version
- #1 (2024-06-08 20:06:00 UTC+0000)
- Instrument
- Brucker Vertex 70v – transmission Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 368.0 - 7497.0 $cm^{-1}$
- Observation geometry
- direct : i=0.0° ; e=180.0° ; az=0.0° ; ph=180.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Mg-Siderite Maroc (Mar) in KBr pellet
- Texture
- compact
- Thickness
- 1.0 $\pm$ 0.25 $mm$
- Temperature
- 295.0 $\pm$ 5.0 $^{\circ}C$
References
- Data reference
- Beck, Pierre; Beyssac, Olivier; Schmitt, Bernard (2023): Near and Mid-IR reflectance, Mid-IR transmission and Raman emission spectra of a series of Fe-Mg carbonates along the Siderite-Magnesite solid solution. SSHADE/DRIMS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20240605_001
