Spectrum preview
Title

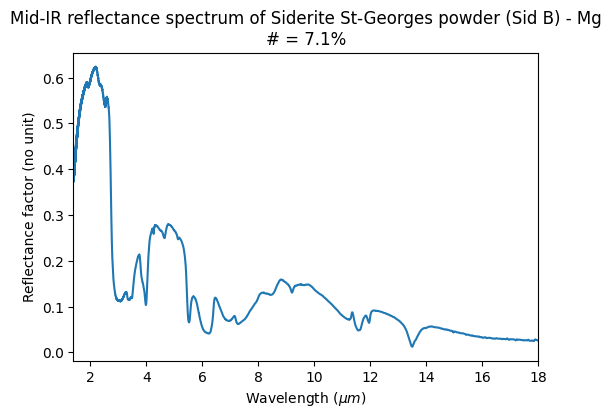

Mid-IR reflectance spectrum of Siderite St-Georges powder (Sid B) - Mg # = 7.1%
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2024-06-08 15:23:32 UTC+0000)
Instrument parameters
Instrument
Brucker Vertex 70 #2 – reflection Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
555.0 - 7000.0 $cm^{-1}$
Observation geometry
biconical : i=0.0° ; e=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Siderite St-Georges (Sid B) powder
Texture
loose fine grained
Thickness
1.0 $\pm$ 0.25 $mm$
Temperature
295.0 $\pm$ 5.0 $^{\circ}C$
References
Data reference
Beck, Pierre; Beyssac, Olivier; Schmitt, Bernard (2023): Near and Mid-IR reflectance, Mid-IR transmission and Raman emission spectra of a series of Fe-Mg carbonates along the Siderite-Magnesite solid solution. SSHADE/DRIMS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20240605_001
