- Instrument
- MoHIS - Hyperspectral imaging system Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 400.0 - 940.0 $nm$ ; 946.0 - 1294.0 $nm$ ; 1300.0 - 2404.0 $nm$
- Observation geometry
- biconical : i=5.0° ; e=0.0° ; az=0.0° ; ph=5.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- roi averaged
- Name

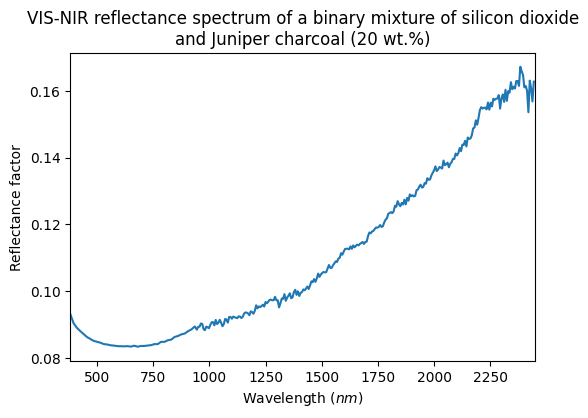

- Binary mixture of silicon dioxide and juniper charcoal (20 wt.%)
- Texture
- loose granular
- Thickness
- 20.0 $\pm$ 1.0 $mm$
- Temperature
- 293.0 $\pm$ 2.0 $K$
References
- Data reference
- Feller, Clement (2020): VIS-NIR reflectance spectra of binary mixtures of silicon dioxide (SiO2) particles (0.5 - 10 µm) and Juniper charcoal particles (less than 50 µm). SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_CF_20200813_000
