Spectrum preview
Title

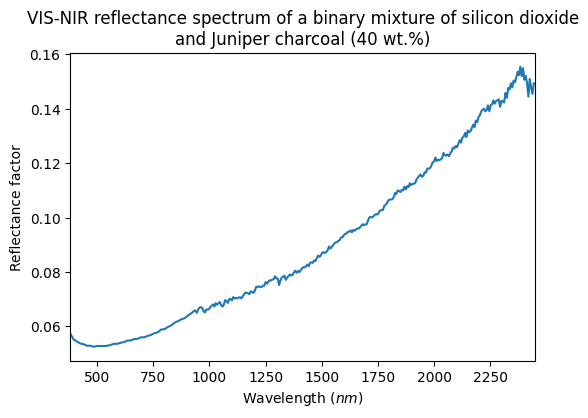

VIS-NIR reflectance spectrum of a binary mixture of silicon dioxide and Juniper charcoal (40 wt.%)
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2023-11-22 12:55:06 UTC+0000)
Instrument parameters
Instrument
MoHIS - Hyperspectral imaging system Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
400.0 - 940.0 $nm$ ; 946.0 - 1294.0 $nm$ ; 1300.0 - 2404.0 $nm$
Observation geometry
biconical : i=5.0° ; e=0.0° ; az=0.0° ; ph=5.0°
Angle observation mode
fixed angles
Spatial observation mode
roi averaged
Sample preview
Name
Binary mixture of silicon dioxide and juniper charcoal (40 wt.%)
Texture
loose granular
Thickness
20.0 $\pm$ 1.0 $mm$
Temperature
293.0 $\pm$ 2.0 $K$
References
Data reference
Feller, Clement (2020): VIS-NIR reflectance spectra of binary mixtures of silicon dioxide (SiO2) particles (0.5 - 10 µm) and Juniper charcoal particles (less than 50 µm). SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_CF_20200813_000
