- Title

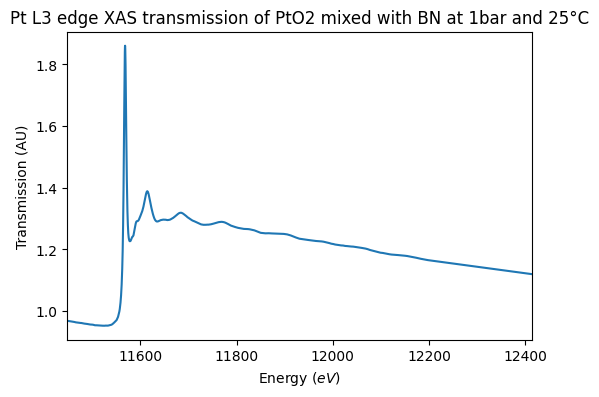

- Pt L3 edge XAS transmission of PtO2 mixed with BN at 1bar and 25°C
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- transmission
- Version
- #1 (2021-07-20 14:15:35 UTC+0000)
- Instrument
- X-ray Absorption Spectroscopy measured in transmission mode
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 11447.5 - 12414.3 $eV$
- Observation geometry
- direct :
- Angle observation mode
- fixed angles
- Spatial observation mode
- averaged
- Name
- Pellet of PtO2 mixed with BN
- Origin
- commercial
- Texture
- compact poor grained
- Thickness
- 2.0 $\pm$ 0.5 $mm$
- Temperature
- 25.0 $\pm$ -268.1 $^{\circ}C$
- Pressure
- 1.0 $bar$
References
- Data reference
- Laskar, Clément; Pokrovski, Gleb; Bazarkina, Elena; Hazemann, Jean-Louis (2021): Pt L3 edge XAS transmission and XAS fluorescence of platinum hydrogensulfide complexes in geological fluids (stability, structure and their impact on ore deposit formation). SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_CL_20210211_001
