NIR spectra of water ice with 280 micron grain size and at 160 K | SSTONE | SSHADE

Experiment NIR reflectance spectra of water ice with varying grain size and temperature

Sub-Experiment 80 micron grain size

Spectrum NIR spectra of water ice with 80 micron grain size and at 77 K Spectrum NIR spectra of water ice with 80 micron grain size and at 81 K Spectrum NIR spectra of water ice with 80 micron grain size and at 96 K Spectrum NIR spectra of water ice with 80 micron grain size and at 110 K Spectrum NIR spectra of water ice with 80 micron grain size and at 124 K Spectrum NIR spectra of water ice with 80 micron grain size and at 139 K Spectrum NIR spectra of water ice with 80 micron grain size and at 153 K Spectrum NIR spectra of water ice with 80 micron grain size and at 168 K Spectrum NIR spectra of water ice with 80 micron grain size and at 182 K Spectrum NIR spectra of water ice with 80 micron grain size and at 196 K

Sub-Experiment 190 micron grain size

Spectrum NIR spectra of water ice with 190 micron grain size and at 80 K Spectrum NIR spectra of water ice with 190 micron grain size and at 90 K Spectrum NIR spectra of water ice with 190 micron grain size and at 100 K Spectrum NIR spectra of water ice with 190 micron grain size and at 110 K Spectrum NIR spectra of water ice with 190 micron grain size and at 120 K Spectrum NIR spectra of water ice with 190 micron grain size and at 130 K Spectrum NIR spectra of water ice with 190 micron grain size and at 140 K Spectrum NIR spectra of water ice with 190 micron grain size and at 150 K Spectrum NIR spectra of water ice with 190 micron grain size and at 160 K Spectrum NIR spectra of water ice with 190 micron grain size and at 170 K Spectrum NIR spectra of water ice with 190 micron grain size and at 180 K

Sub-Experiment 210 micron grain size

Spectrum NIR spectra of water ice with 210 micron grain size and at 77 K Spectrum NIR spectra of water ice with 210 micron grain size and at 81 K Spectrum NIR spectra of water ice with 210 micron grain size and at 96 K Spectrum NIR spectra of water ice with 210 micron grain size and at 110 K Spectrum NIR spectra of water ice with 210 micron grain size and at 124 K Spectrum NIR spectra of water ice with 210 micron grain size and at 139 K Spectrum NIR spectra of water ice with 210 micron grain size and at 153 K Spectrum NIR spectra of water ice with 210 micron grain size and at 168 K Spectrum NIR spectra of water ice with 210 micron grain size and at 182 K Spectrum NIR spectra of water ice with 210 micron grain size and at 196 K

Sub-Experiment 270 micron grain size

Spectrum NIR spectra of water ice with 270 micron grain size and at 76 K Spectrum NIR spectra of water ice with 270 micron grain size and at 80 K Spectrum NIR spectra of water ice with 270 micron grain size and at 80 K Spectrum NIR spectra of water ice with 270 micron grain size and at 81 K Spectrum NIR spectra of water ice with 270 micron grain size and at 90 K Spectrum NIR spectra of water ice with 270 micron grain size and at 90 K Spectrum NIR spectra of water ice with 270 micron grain size and at 96 K Spectrum NIR spectra of water ice with 270 micron grain size and at 100 K Spectrum NIR spectra of water ice with 270 micron grain size and at 100 K Spectrum NIR spectra of water ice with 270 micron grain size and at 110 K Spectrum NIR spectra of water ice with 270 micron grain size and at 110 K Spectrum NIR spectra of water ice with 270 micron grain size and at 110 K Spectrum NIR spectra of water ice with 270 micron grain size and at 120 K Spectrum NIR spectra of water ice with 270 micron grain size and at 120 K Spectrum NIR spectra of water ice with 270 micron grain size and at 124 K Spectrum NIR spectra of water ice with 270 micron grain size and at 130 K Spectrum NIR spectra of water ice with 270 micron grain size and at 130 K Spectrum NIR spectra of water ice with 270 micron grain size and at 139 K Spectrum NIR spectra of water ice with 270 micron grain size and at 140 K Spectrum NIR spectra of water ice with 270 micron grain size and at 140 K Spectrum NIR spectra of water ice with 270 micron grain size and at 150 K Spectrum NIR spectra of water ice with 270 micron grain size and at 150 K Spectrum NIR spectra of water ice with 270 micron grain size and at 153 K Spectrum NIR spectra of water ice with 270 micron grain size and at 160 K Spectrum NIR spectra of water ice with 270 micron grain size and at 168 K Spectrum NIR spectra of water ice with 270 micron grain size and at 170 K Spectrum NIR spectra of water ice with 270 micron grain size and at 180 K

Sub-Experiment 280 micron grain size

Spectrum NIR spectra of water ice with 280 micron grain size and at 80 K Spectrum NIR spectra of water ice with 280 micron grain size and at 90 K Spectrum NIR spectra of water ice with 280 micron grain size and at 100 K Spectrum NIR spectra of water ice with 280 micron grain size and at 110 K Spectrum NIR spectra of water ice with 280 micron grain size and at 120 K Spectrum NIR spectra of water ice with 280 micron grain size and at 130 K Spectrum NIR spectra of water ice with 280 micron grain size and at 140 K Spectrum NIR spectra of water ice with 280 micron grain size and at 150 K Spectrum NIR spectra of water ice with 280 micron grain size and at 160 K Spectrum NIR spectra of water ice with 280 micron grain size and at 170 K Spectrum NIR spectra of water ice with 280 micron grain size and at 180 K

Sub-Experiment 390 micron grain size

Spectrum NIR spectra of water ice with 390 micron grain size and at 77 K Spectrum NIR spectra of water ice with 390 micron grain size and at 81 K Spectrum NIR spectra of water ice with 390 micron grain size and at 96 K Spectrum NIR spectra of water ice with 390 micron grain size and at 110 K Spectrum NIR spectra of water ice with 390 micron grain size and at 124 K Spectrum NIR spectra of water ice with 390 micron grain size and at 139 K Spectrum NIR spectra of water ice with 390 micron grain size and at 153 K Spectrum NIR spectra of water ice with 390 micron grain size and at 168 K Spectrum NIR spectra of water ice with 390 micron grain size and at 182 K Spectrum NIR spectra of water ice with 390 micron grain size and at 196 K

Sub-Experiment 480 micron grain size

Spectrum NIR spectra of water ice with 480 micron grain size and at 80 K Spectrum NIR spectra of water ice with 480 micron grain size and at 100 K Spectrum NIR spectra of water ice with 480 micron grain size and at 120 K Spectrum NIR spectra of water ice with 480 micron grain size and at 140 K Spectrum NIR spectra of water ice with 480 micron grain size and at 160 K Spectrum NIR spectra of water ice with 480 micron grain size and at 180 K

Sub-Experiment 540 micron grain size

Spectrum NIR spectra of water ice with 540 micron grain size and at 80 K Spectrum NIR spectra of water ice with 540 micron grain size and at 90 K Spectrum NIR spectra of water ice with 540 micron grain size and at 100 K Spectrum NIR spectra of water ice with 540 micron grain size and at 110 K Spectrum NIR spectra of water ice with 540 micron grain size and at 120 K Spectrum NIR spectra of water ice with 540 micron grain size and at 130 K Spectrum NIR spectra of water ice with 540 micron grain size and at 140 K Spectrum NIR spectra of water ice with 540 micron grain size and at 150 K Spectrum NIR spectra of water ice with 540 micron grain size and at 160 K Spectrum NIR spectra of water ice with 540 micron grain size and at 170 K Spectrum NIR spectra of water ice with 540 micron grain size and at 180 K

Sub-Experiment 560 micron grain size

Spectrum NIR spectra of water ice with 560 micron grain size and at 80 K Spectrum NIR spectra of water ice with 560 micron grain size and at 90 K Spectrum NIR spectra of water ice with 560 micron grain size and at 100 K Spectrum NIR spectra of water ice with 560 micron grain size and at 110 K Spectrum NIR spectra of water ice with 560 micron grain size and at 120 K Spectrum NIR spectra of water ice with 560 micron grain size and at 130 K Spectrum NIR spectra of water ice with 560 micron grain size and at 140 K Spectrum NIR spectra of water ice with 560 micron grain size and at 150 K Spectrum NIR spectra of water ice with 560 micron grain size and at 160 K Spectrum NIR spectra of water ice with 560 micron grain size and at 170 K Spectrum NIR spectra of water ice with 560 micron grain size and at 180 K

Sub-Experiment 590 micron grain size

Spectrum NIR spectra of water ice with 590 micron grain size and at 80 K Spectrum NIR spectra of water ice with 590 micron grain size and at 90 K Spectrum NIR spectra of water ice with 590 micron grain size and at 100 K Spectrum NIR spectra of water ice with 590 micron grain size and at 110 K Spectrum NIR spectra of water ice with 590 micron grain size and at 120 K Spectrum NIR spectra of water ice with 590 micron grain size and at 130 K Spectrum NIR spectra of water ice with 590 micron grain size and at 140 K Spectrum NIR spectra of water ice with 590 micron grain size and at 150 K Spectrum NIR spectra of water ice with 590 micron grain size and at 160 K Spectrum NIR spectra of water ice with 590 micron grain size and at 170 K Spectrum NIR spectra of water ice with 590 micron grain size and at 180 K

Sub-Experiment 610 micron grain size

Spectrum NIR spectra of water ice with 610 micron grain size and at 80 K Spectrum NIR spectra of water ice with 610 micron grain size and at 90 K Spectrum NIR spectra of water ice with 610 micron grain size and at 100 K Spectrum NIR spectra of water ice with 610 micron grain size and at 110 K Spectrum NIR spectra of water ice with 610 micron grain size and at 120 K Spectrum NIR spectra of water ice with 610 micron grain size and at 130 K Spectrum NIR spectra of water ice with 610 micron grain size and at 140 K Spectrum NIR spectra of water ice with 610 micron grain size and at 150 K Spectrum NIR spectra of water ice with 610 micron grain size and at 160 K Spectrum NIR spectra of water ice with 610 micron grain size and at 170 K Spectrum NIR spectra of water ice with 610 micron grain size and at 180 K

Sub-Experiment 640 micron grain size

Spectrum NIR spectra of water ice with 640 micron grain size and at 77 K Spectrum NIR spectra of water ice with 640 micron grain size and at 78 K Spectrum NIR spectra of water ice with 640 micron grain size and at 80 K Spectrum NIR spectra of water ice with 640 micron grain size and at 90 K Spectrum NIR spectra of water ice with 640 micron grain size and at 100 K Spectrum NIR spectra of water ice with 640 micron grain size and at 110 K Spectrum NIR spectra of water ice with 640 micron grain size and at 110 K Spectrum NIR spectra of water ice with 640 micron grain size and at 120 K Spectrum NIR spectra of water ice with 640 micron grain size and at 130 K Spectrum NIR spectra of water ice with 640 micron grain size and at 140 K Spectrum NIR spectra of water ice with 640 micron grain size and at 150 K Spectrum NIR spectra of water ice with 640 micron grain size and at 153 K Spectrum NIR spectra of water ice with 640 micron grain size and at 160 K Spectrum NIR spectra of water ice with 640 micron grain size and at 170 K Spectrum NIR spectra of water ice with 640 micron grain size and at 180 K Spectrum NIR spectra of water ice with 640 micron grain size and at 182 K Spectrum NIR spectra of water ice with 640 micron grain size and at 190 K

Sub-Experiment 680 micron grain size

Spectrum NIR spectra of water ice with 680 micron grain size and at 80 K Spectrum NIR spectra of water ice with 680 micron grain size and at 90 K Spectrum NIR spectra of water ice with 680 micron grain size and at 100 K Spectrum NIR spectra of water ice with 680 micron grain size and at 110 K Spectrum NIR spectra of water ice with 680 micron grain size and at 120 K Spectrum NIR spectra of water ice with 680 micron grain size and at 130 K Spectrum NIR spectra of water ice with 680 micron grain size and at 140 K Spectrum NIR spectra of water ice with 680 micron grain size and at 150 K Spectrum NIR spectra of water ice with 680 micron grain size and at 160 K Spectrum NIR spectra of water ice with 680 micron grain size and at 170 K Spectrum NIR spectra of water ice with 680 micron grain size and at 180 K

Sub-Experiment 690 micron grain size

Spectrum NIR spectra of water ice with 690 micron grain size and at 80 K Spectrum NIR spectra of water ice with 690 micron grain size and at 80 K Spectrum NIR spectra of water ice with 690 micron grain size and at 90 K Spectrum NIR spectra of water ice with 690 micron grain size and at 90 K Spectrum NIR spectra of water ice with 690 micron grain size and at 100 K Spectrum NIR spectra of water ice with 690 micron grain size and at 100 K Spectrum NIR spectra of water ice with 690 micron grain size and at 110 K Spectrum NIR spectra of water ice with 690 micron grain size and at 110 K Spectrum NIR spectra of water ice with 690 micron grain size and at 120 K Spectrum NIR spectra of water ice with 690 micron grain size and at 120 K Spectrum NIR spectra of water ice with 690 micron grain size and at 130 K Spectrum NIR spectra of water ice with 690 micron grain size and at 130 K Spectrum NIR spectra of water ice with 690 micron grain size and at 140 K Spectrum NIR spectra of water ice with 690 micron grain size and at 140 K Spectrum NIR spectra of water ice with 690 micron grain size and at 150 K Spectrum NIR spectra of water ice with 690 micron grain size and at 150 K Spectrum NIR spectra of water ice with 690 micron grain size and at 160 K Spectrum NIR spectra of water ice with 690 micron grain size and at 160 K Spectrum NIR spectra of water ice with 690 micron grain size and at 170 K Spectrum NIR spectra of water ice with 690 micron grain size and at 170 K Spectrum NIR spectra of water ice with 690 micron grain size and at 180 K Spectrum NIR spectra of water ice with 690 micron grain size and at 180 K

Sub-Experiment 760 micron grain size

Spectrum NIR spectra of water ice with 760 micron grain size and at 80 K Spectrum NIR spectra of water ice with 760 micron grain size and at 90 K Spectrum NIR spectra of water ice with 760 micron grain size and at 100 K Spectrum NIR spectra of water ice with 760 micron grain size and at 110 K Spectrum NIR spectra of water ice with 760 micron grain size and at 120 K Spectrum NIR spectra of water ice with 760 micron grain size and at 130 K Spectrum NIR spectra of water ice with 760 micron grain size and at 140 K Spectrum NIR spectra of water ice with 760 micron grain size and at 150 K Spectrum NIR spectra of water ice with 760 micron grain size and at 160 K Spectrum NIR spectra of water ice with 760 micron grain size and at 170 K Spectrum NIR spectra of water ice with 760 micron grain size and at 180 K

Sub-Experiment 770 micron grain size

Spectrum NIR spectra of water ice with 770 micron grain size and at 80 K Spectrum NIR spectra of water ice with 770 micron grain size and at 90 K Spectrum NIR spectra of water ice with 770 micron grain size and at 100 K Spectrum NIR spectra of water ice with 770 micron grain size and at 110 K Spectrum NIR spectra of water ice with 770 micron grain size and at 120 K Spectrum NIR spectra of water ice with 770 micron grain size and at 130 K Spectrum NIR spectra of water ice with 770 micron grain size and at 140 K Spectrum NIR spectra of water ice with 770 micron grain size and at 150 K Spectrum NIR spectra of water ice with 770 micron grain size and at 160 K Spectrum NIR spectra of water ice with 770 micron grain size and at 170 K Spectrum NIR spectra of water ice with 770 micron grain size and at 180 K

Sub-Experiment 790 micron grain size

Spectrum NIR spectra of water ice with 790 micron grain size and at 78 K Spectrum NIR spectra of water ice with 790 micron grain size and at 80 K Spectrum NIR spectra of water ice with 790 micron grain size and at 90 K Spectrum NIR spectra of water ice with 790 micron grain size and at 100 K Spectrum NIR spectra of water ice with 790 micron grain size and at 110 K Spectrum NIR spectra of water ice with 790 micron grain size and at 120 K Spectrum NIR spectra of water ice with 790 micron grain size and at 130 K Spectrum NIR spectra of water ice with 790 micron grain size and at 140 K Spectrum NIR spectra of water ice with 790 micron grain size and at 150 K Spectrum NIR spectra of water ice with 790 micron grain size and at 160 K Spectrum NIR spectra of water ice with 790 micron grain size and at 170 K Spectrum NIR spectra of water ice with 790 micron grain size and at 180 K

Sub-Experiment 1020 micron grain size

Spectrum NIR spectra of water ice with 1020 micron grain size and at 80 K Spectrum NIR spectra of water ice with 1020 micron grain size and at 90 K Spectrum NIR spectra of water ice with 1020 micron grain size and at 100 K Spectrum NIR spectra of water ice with 1020 micron grain size and at 110 K Spectrum NIR spectra of water ice with 1020 micron grain size and at 120 K Spectrum NIR spectra of water ice with 1020 micron grain size and at 130 K Spectrum NIR spectra of water ice with 1020 micron grain size and at 140 K Spectrum NIR spectra of water ice with 1020 micron grain size and at 150 K Spectrum NIR spectra of water ice with 1020 micron grain size and at 160 K Spectrum NIR spectra of water ice with 1020 micron grain size and at 170 K Spectrum NIR spectra of water ice with 1020 micron grain size and at 180 K

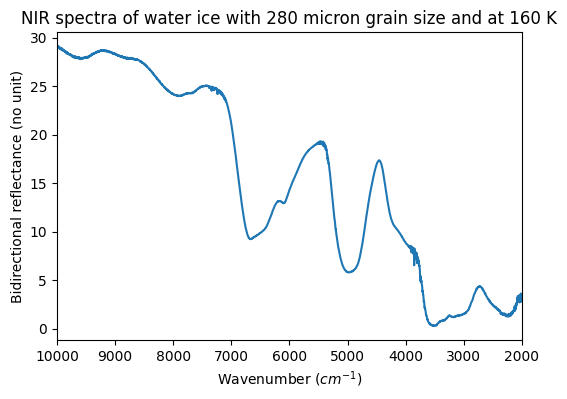

Spectrum preview

Title

NIR spectra of water ice with 280 micron grain size and at 160 K

Database

Experiment type

laboratory measurement

Spectrum type

bidirectional reflectance

Version

#1 (2019-10-26 08:33:48 UTC+0000)

Instrument parameters

Instrument: Nicolet 5700 - reflection Near-IR
Spectral observation mode: spectrum
Valid spectral range(s): 2000.0 - 10000.0 $cm^{-1}$
Observation geometry: bidirectional : i=0.0° ; e=0.0°
Angle observation mode: fixed angles
Spatial observation mode: single spot

Sample preview

Name: Water ice of 280 micron grain size and at 160 K
Origin: laboratory
Texture: loose granular
Thickness: 5.0 $\pm$ 1.0 $mm$
Temperature: 160.0 $\pm$ 0.3 $K$

References

Data reference

Taffin, Cécile (2009): NIR reflectance spectra of water ice with varying grain size and temperature. SSHADE/SSTONE (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_CT_20090317_001

Publications

Taffin et al., 2011, Planet. Space Sci., 61, 124 - 134
