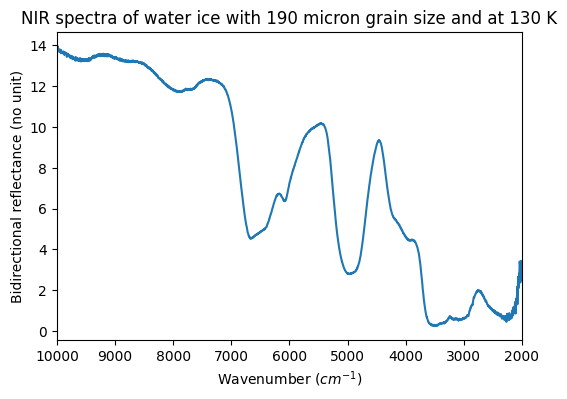

Spectrum preview

Title

NIR spectra of water ice with 190 micron grain size and at 130 K

Database

Experiment type

laboratory measurement

Spectrum type

bidirectional reflectance

Version

#1 (2019-10-26 08:33:48 UTC+0000)

Instrument parameters

Instrument: Nicolet 5700 - reflection Near-IR
Spectral observation mode: spectrum
Valid spectral range(s): 2000.0 - 10000.0 $cm^{-1}$
Observation geometry: bidirectional : i=0.0° ; e=0.0°
Angle observation mode: fixed angles
Spatial observation mode: single spot

Sample preview

Name: Water ice of 190 micron grain size and at 130 K
Origin: laboratory
Texture: loose granular
Thickness: 5.0 $\pm$ 1.0 $mm$
Temperature: 130.0 $\pm$ 0.3 $K$

References

Data reference

Taffin, Cécile (2009): NIR reflectance spectra of water ice with varying grain size and temperature. SSHADE/SSTONE (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_CT_20090317_001

Publications

Taffin et al., 2011, Planet. Space Sci., 61, 124 - 134
