Spectrum

NIR reflectance spectrum of AMES tholins at ambient T

Title
NIR reflectance spectrum of AMES tholins at ambient T
Draw options
Draw line: Fill area:
Line width:
Fill opacity:
Colors:
Range:
Saturation:
Lightness:
Data
Unit:  Range: Valid spectral range(s): 4300.0 - 9000.0 cm-1
X Axis
Scale:   Inverted:
Y Axis
Scale:
Legend
Position:   Visibility:
DOI
10.26302/SSHADE/EXPERIMENT_DM_20131017_001
Data reference
Mege, Daniel; Nna-Mvondo, Delphine; Singh, Sandeep; Chevrier, Vincent (2013): NIR reflectance spectra of mixtures of AMES tholins with liquid and solid CH4, C2H6 and CH3CN at several temperatures. SSHADE/SOSYPOL (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_DM_20131017_001
Publications
Database
Experimentalists
Spectrum type
Experiment type
laboratory measurement
Type
reflectance factor
Intensity unit
$\unicode{x2030}$
Instrument #1
Instrument
FTIR_NIR_reflectance
Sample holder
Andromeda simulation chamber with Titan Module
Standard medium
vacuum
Observation mode
spectrum
Spectral range type(s)
NIR
Valid spectral range(s)
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge
#1 7330.0 - 9000.0 4.0 2.0
#2 4300.0 - 7100.0 4.0 2.0
Scan number
450
Observation geometry
bidirectional
Observation mode
fixed angles
Incidence angle
0.0°
Emergence angle
5.0°
Azimuth angle
0.0°
Phase angle
5.0°
Observation mode
single spot
Resolutions
15.0 ${\pm}$ 5.0 $mm$
Name
Tholins AMES 90%N2:10%CH4
Comments
Spectra taken in full N2 atmosphere at ambient P and T. Remains unchanged after pressurisation to 0.41 bar.
Experiment
NIR reflectance spectra of mixtures of AMES tholins with liquid and solid CH4, C2H6 and CH3CN at several temperatures
Date begin
2013-10-17 15:25:00
Release date
2020-02-13 12:08:22 UTC+0000
Version (Date)
#1 (2020-02-13 12:08:22 UTC+0000, Updated: 2020-02-13 12:08:22 UTC+0000)
History
Date Mode Version Status Comments
2017-08-12 13:46:24 UTC+0000 first import #1 valid version New NIR reflectance spectrum of tholins #1 at ambient temperature
Analysis
Raw data. Reflectance spectrum relative to Spectralon measured at 140K.
Quality flag
2

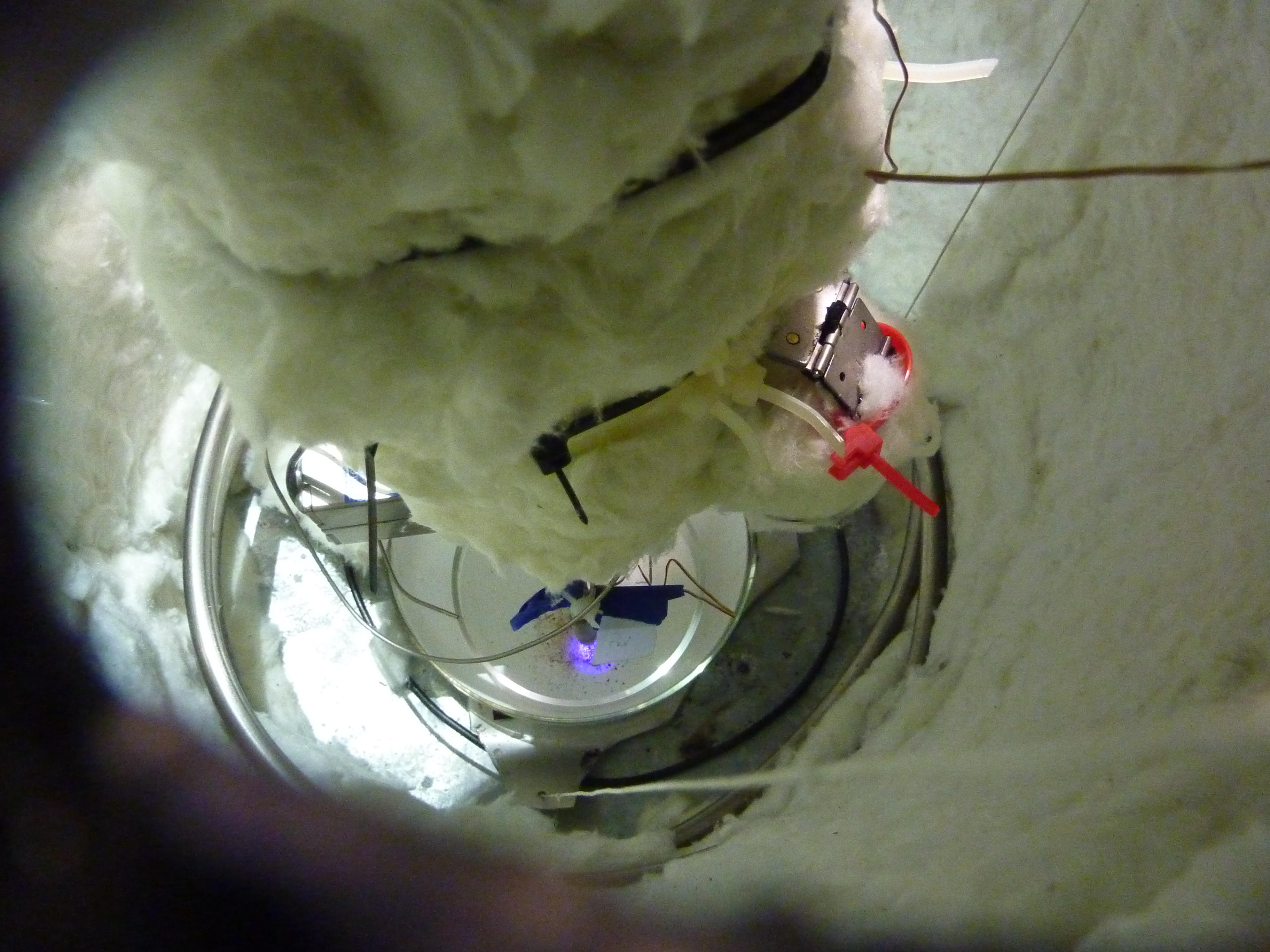

Interior of the Andromeda chamber before closing for this experiment and recording this spectrum (SPECTRUM_DM_20131017_100). The cylinder at the top of the image is the condenser. The tholin sample is lightened by the laser beam of the fiber optics. The location of the thermocouple located at the valve level is indicated by a small numbered piece of paper.
