- Instrument
- Micro-Raman LabRam HR800 - 514 nm
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 200.0 - 1500.0 $cm^{-1}$
- Observation geometry
- directional-conical :
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name

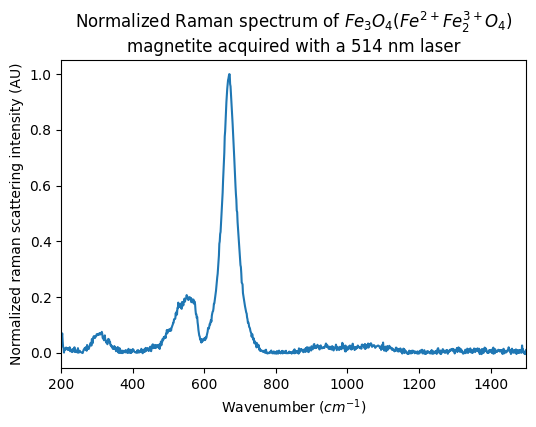

- Magnetite
- Origin
- natural terrestrial
- Texture
- compact crystal
- Temperature
- 22.0 $\pm$ 1.0 $^{\circ}C$
References
- Data reference
- Montagnac, Gilles (2000): Raman spectra of some oxide-hydroxide minerals. SSHADE/REAP (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_GM_20190905_001
