- Title

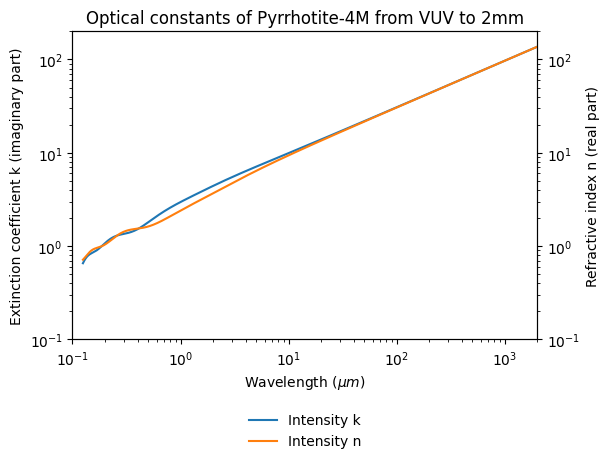

- Optical constants of Pyrrhotite-4M from VUV to 2mm
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- optical constants
- Version
- #1 (2024-07-26 12:55:26 UTC+0000)
- Instrument
- LZH VUV – reflection
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 0.125 - 0.23 ${\mu}m$
- Observation geometry
- specular : i=15.0° ; e=15.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- Lambda 19 – reflection UV
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 0.19 - 0.319 ${\mu}m$
- Observation geometry
- specular : i=12.0° ; e=12.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- Lambda 19 – reflection vis
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 0.319 - 0.86 ${\mu}m$
- Observation geometry
- specular : i=12.0° ; e=12.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- Lambda 19 – reflection NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 0.86 - 3.2 ${\mu}m$
- Observation geometry
- specular : i=12.0° ; e=12.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- BRUKER 113v – reflection Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 2.0 - 25.0 ${\mu}m$
- Observation geometry
- specular : i=12.0° ; e=12.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- BRUKER 113v – reflection Far-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 15.0 - 500.0 ${\mu}m$
- Observation geometry
- specular : i=12.0° ; e=12.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- TeraFlash – THz reflection
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 150.0 - 3000.0 $GHz$
- Observation geometry
- specular : i=15.0° ; e=15.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Pyrrhotite-4M crystal from Dalnegorsk
- Origin
- natural terrestrial
- Texture
- compact crystal
- Temperature
- 300.0 $\pm$ 5.0 $K$
References
- Data reference
- Kranhold, Christian; Mutschke, Harald (2022): Optical constants of troilite and pyrrhotite from VUV to 2 mm wavelength. SSHADE/DOCCD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_HM_20240726_001
