Optical constants of amorphous silicate grains Mg(1-x)FexSiO3, x=0.10, processed sample, 200 K | STOPCODA

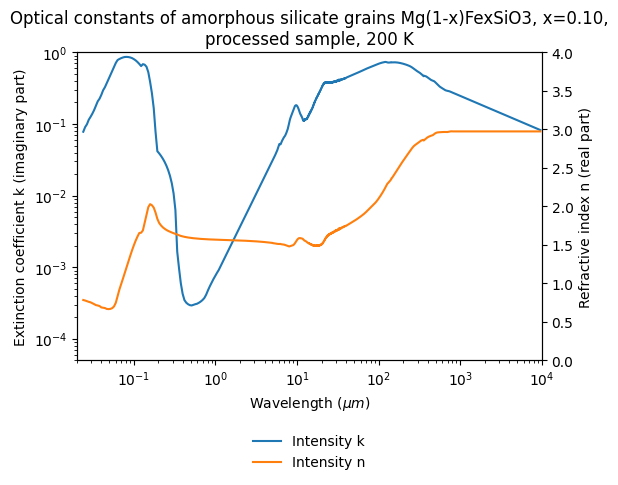

Spectrum preview

Title

Optical constants of amorphous silicate grains Mg(1-x)FexSiO3, x=0.10, processed sample, 200 K

Database

STOPCODA

Experiment type

laboratory measurement

Spectrum type

optical constants

Version

#1 (2022-05-25 14:47:33 UTC+0000)

Instrument parameters

Instrument: Kramers-Kronig calculation of optical constant and numerical extrapolation from UV to cm
Spectral observation mode: spectrum
Valid spectral range(s): 0.024 - 100000.0 ${\mu}m$
Spatial observation mode: single spot

Sample preview

Name: Amorphous silicate Mg $_{(1-x)}$ Fe $_x$ SiO $_3$ , x=0.1, processed powder, HDPE and KBr pellets
Texture: compact
Thickness: 2.0 $\pm$ 0.4 $mm$
Temperature: 200.0 $\pm$ 2.0 $K$

References

Data reference

Demyk, Karine (2015): Optical constants of Mg- and Fe-rich amorphous silicate Mg

_{(1 - x)}

$_{(1-x)}$ Fe

_{x}

$_x$ SiO

_{3}

$_3$ , x=0.1 - 0.2 - 0.3 - 0.4, processed samples, 10-300 K, UV-mm range. SSHADE/STOPCODA (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_KD_20220525_002

Publications
