- Title

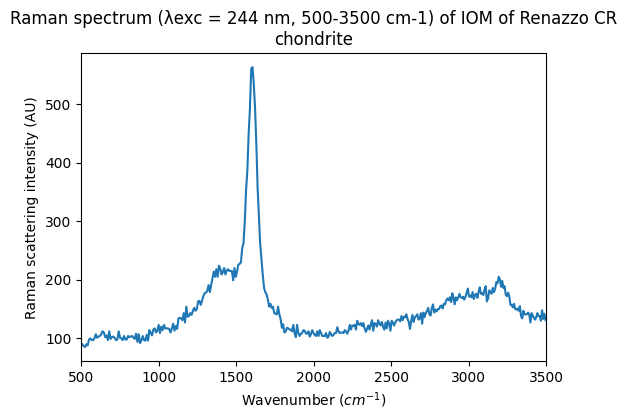

- Raman spectrum (λexc = 244 nm, 500-3500 cm-1) of IOM of Renazzo CR chondrite
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- Raman scattering intensity
- Version
- #1 (2020-02-27 09:21:30 UTC+0000)
- Instrument
- labRAM HR800 micro-Raman UV - 244nm
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 400.0 - 4000.0 $cm^{-1}$
- Observation geometry
- other geometry :
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- IOM Renazzo (HF/HCl) on glass slide
- Origin
- extraterrestrial
- Texture
- individual grains
- Thickness
- 15.0 $\pm$ 5.0 ${\mu}m$
- Temperature
- 22.0 $\pm$ 2.0 $^{\circ}C$
- Irradiated by
-
- UV photons
References
- Data reference
- Quirico, Eric; Montagnac, Gilles (2006): UV Raman spectra (λ = 244 nm) of chondritic IOM (CI, CM, CR, ung.). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20200226_001
